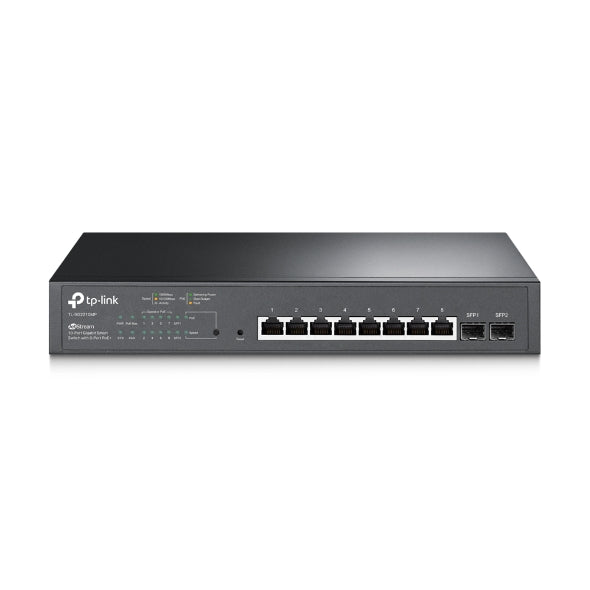

TP-Link SG2210MP 10-Port Gigabit Smart Switch with 8-Port PoE+ 1xFan 14.9Mpps Support Omada SDN/802.1p CoS/DSCP QOS/IGMP Snoop Rack Mountable

Features 8 802.3af/at compliant PoE+ ports; with total PoE power budget of 150 W and useful PoE power management features Omada SDN platform integration provides 100% centralised cloud management to create a highly scalable network Gigabit Ethernet connections on all ports provide full speed of data transferring Advanced security features include IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm Control; DHCP Snooping; 802.1X; and Radius Authentication L2/L3/L4 QoS and IGMP snooping optimise voice and video applications WEB/CLI managed modes; SNMP; RMON bring abundant management features

HARDWARE FEATURES Standards and ProtocolsIEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE802.3z; IEEE 802.3ad; IEEE 802.3x; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az; IEEE 802.1d; IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1x; IEEE 802.1p Interface 8 10/100/1000 Mbps RJ45 Ports; all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) 2 100/1000 Mbps SFP Slots Network Media 10BASE-T: UTP/STP category 3; 4; 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP/STP category 5; 5e or above cable (maximum 100m) 100BASE-FX: MMF; SMF 1000BASE-X: MMF; SMF Fan Quantity1 Physical Security LockYes PoE+ Ports(RJ45) Standard: 802.3at/af compliant PoE+ Ports: 8 Ports Power Supply: 150 W Dimensions ( W x D x H ) (294 x 180 x 44 mm) MountingRackmount/Desktop Max Power Consumption 12.2 W (110 V / 60 Hz with no PD connected) 173.9 W (110 V / 60 Hz with 150 W PD connected) Max Heat Dissipation 41.63 BTU/h (with no PD connected) 539.35 BTU/h (with 150 W PD connected) PERFORMANCE Switching Capacity20 Gbps Packet Forwarding Rate14.9 Mpps MAC Address Table8K Packet Buffer Memory4.1 Mbit Jumbo Frame9 KB
