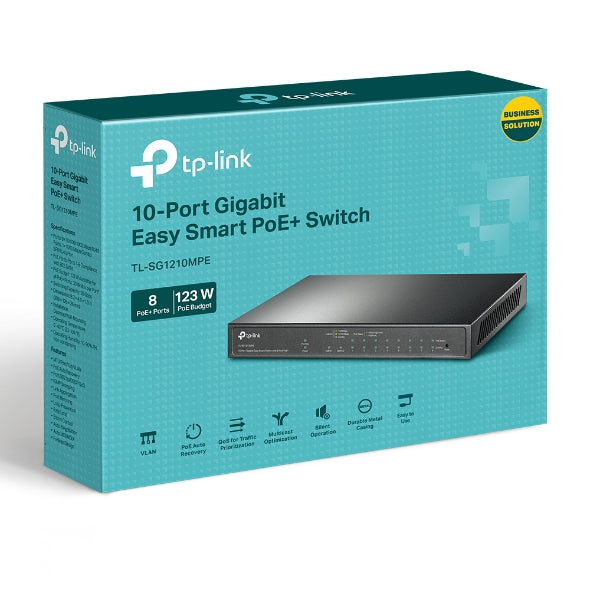

TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+PORT: 8× Gigabit PoE+ Ports
Estimated delivery between December 28 and December 30.
Minimum of
1
/
increment of
1
TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+• 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port • Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port; the switch can transfer data and power via one single cable • Supports PoE power up to 123 W for all PoE ports* • Provides network monitoring; traffic prioritisation; VLAN features; and PoE Auto Recovery • Simple network set-up on top of plug-and-play connectivity • Web-based user interface and Easy Smart Configuration Utility simplify configuration • Fanless design lowers energy consumption and eliminates operating noise HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3x; IEEE 802.1q; IEEE 802.1p; IEEE 802.3at; IEEE 802.3z Interface 9× 10/100/1000 Mbps RJ45 Ports 1× 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5 VDC/2.43 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 123 W Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) Max Power Consumption 7.66 W (220V / 50Hz with no PD connected) 141.54 W (220V / 50Hz with 123 W PD connected) Max Heat Dissipation 26.12 BTU/h (220V / 50Hz with no PD connected) 482.65 BTU/h (220V / 50Hz with 123 W PD connected) PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps MAC Address Table 4 K Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Agg
@14/32
