TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+/Up To 40W For all PoE Ports/Up To 30W Each Port

$96.93

Estimated delivery between June 13 and June 15.

Minimum of 1 / increment of 1
TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • 5 10/100/1000 Mbps RJ45 ports With four PoE+ ports; transfers data and power on one single cable Works with IEEE 802.3af/at compliant PDs 802.1p/DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 30 W for each PoE port Supports PoE Power up to 40 W for all PoE ports* Plug and play; no configuration and installation required

    HARDWARE FEATURES Interface 5 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) Fan QuantityFanless External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 0.81 A) Packet Forwarding Rate7.44 Mpps PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Ports 14 Power Supply: 40 W Mac Address Table2K Jumbo Frame16 KB Switching Capacity10 Gbps Dimensions ( W x D x H )3.93.91.0 in (99.89825 mm) Max Power Consumption 4.12 W (220/50 Hz. no PD connected) 47.5 W (220/50 Hz. with 40 W PD connected) Max Heat Dissipation 14.05 BTU/h (no PD connected) 161.98 BTU/h (with 40 W PD connected)

    SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Transfer MethodStore-And-Forward

    OTHERS CertificationFCC; CE; RoHS Package Contents TL-SG1005LP Power Adapter Installation Guide Environment Operating Temperature: 040 ? (32104 ?); Storage Temperature: -4070 ? (-40158 ?) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing

    @15/16

    • Share information about your brand with your customers. Describe a product, make announcements, or welcome customers to your store.

    Share information about your brand with your customers. Describe a product, make announcements, or welcome customers to your store.

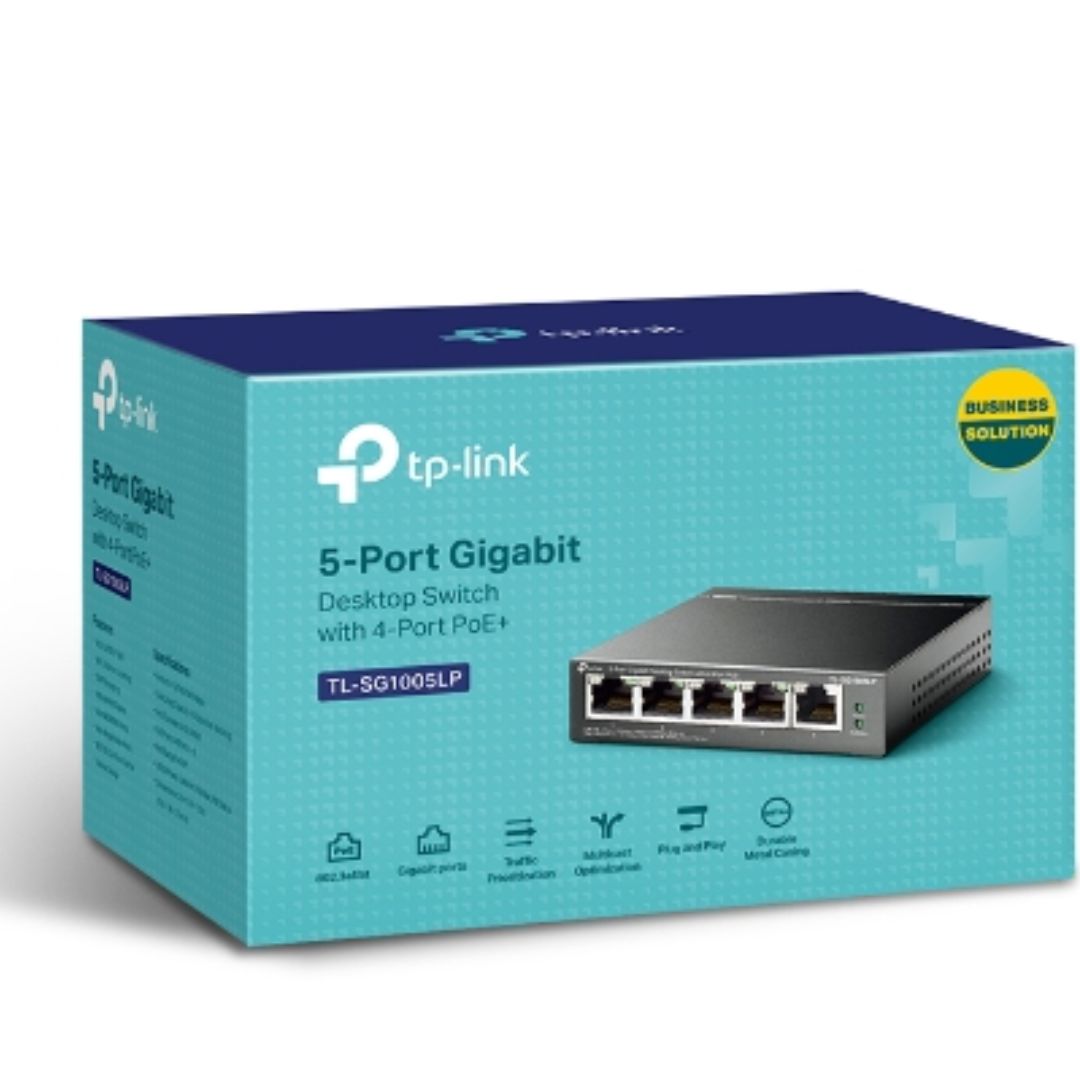

    Product Image
