DESCRIPTION

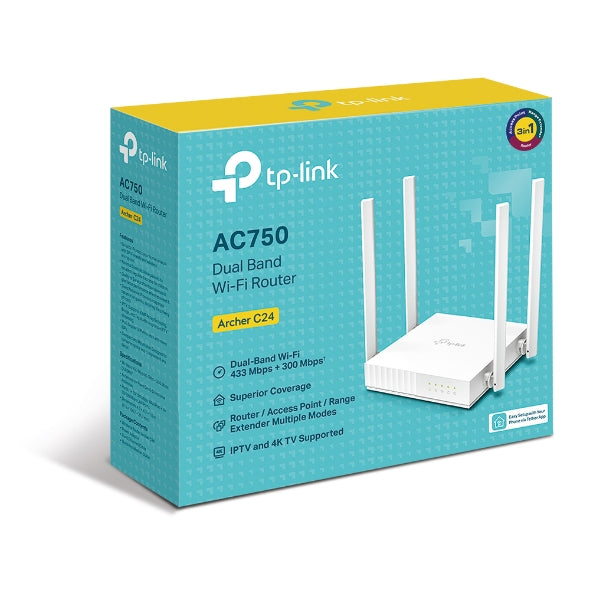

TP-Link Archer C24 AC750 Dual-Band Wi-Fi Router

• High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming high-speed downloading.
• Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
• Multi-Mode 3 in 1—Supports Router Access Point and Range Extender to add flexibilities.
• Parental Controls—Manages when and how connected devices can access the internet.
• Guest Network—Provides separate access for guests while securing the host network.
• Smooth HD Streaming—Supports IGMP Proxy/Snooping Bridge and Tag VLAN to optimize IPTV streaming.
• IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
• Compact and Mountable—Designed to conserve space and complement any décor.

WIRELESS
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC750
5 GHz: 433 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 2 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity Medium
Dual-Band
Allocate devices to different bands for optimal performance
Working Modes Router Mode
Access Point Mode
Range Extender Mode

HARDWARE
Processor Single-Core CPU
Ethernet Ports 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons WPS Button
Reset Button
Power 5 V ⎓ 0.6 A

SECURITY
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

PHYSICAL
Dimensions (W×D×H) (115 x 106.7 x 24.3 mm)

WiFi Reception Sensitivity 5GHz:
11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:
-62dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm
