DESCRIPTION

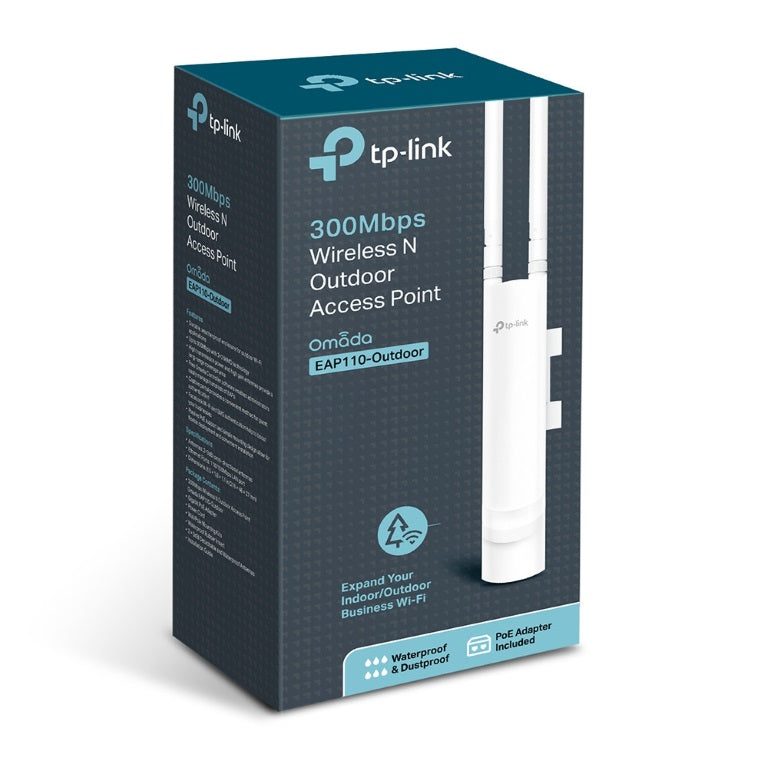

TP-Link EAP110 Outdoor 300Mbps Wireless N Outdoor Access Point 1xRJ45 Passive PoE 2*5dBi External Omni waterproof Antenna Pole/Wall Mounting

Built for outdoor Wi-Fi applications
Up to 300Mbps Wi-Fi with 2x2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Durable weatherproof enclosure to withstand fair and foul weather
Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication

HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button Reset
Power Supply 24VDC / 0.6A Passive PoE Supply
Power Consumption 6.3 W
Dimensions ( W x D x H ) 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
Antenna Type 2*5dBi External Omni waterproof
Mounting Pole / Wall Mounting (Kits included)
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Transmit Power CE：
<20dBm
FCC:
<27dBm
Wireless Functions Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise
WPA-PSK / WPA2-PSK
