Yale Assure Wireless Z-Wave & bluetooth Remote Digital Smart deadbolt Lockset



This product is currently sold out

  • Yale Assure Wireless Z-Wave & bluetooth Remote Digital Smart deadbolt Lockset
  • Yale Assure Wireless Z-Wave & bluetooth Remote Digital Smart deadbolt Lockset
  • Yale Assure Wireless Z-Wave & bluetooth Remote Digital Smart deadbolt Lockset
  • Yale Assure Wireless Z-Wave & bluetooth Remote Digital Smart deadbolt Lockset
  • Yale Assure Wireless Z-Wave & bluetooth Remote Digital Smart deadbolt Lockset
  • Yale Assure Wireless Z-Wave & bluetooth Remote Digital Smart deadbolt Lockset

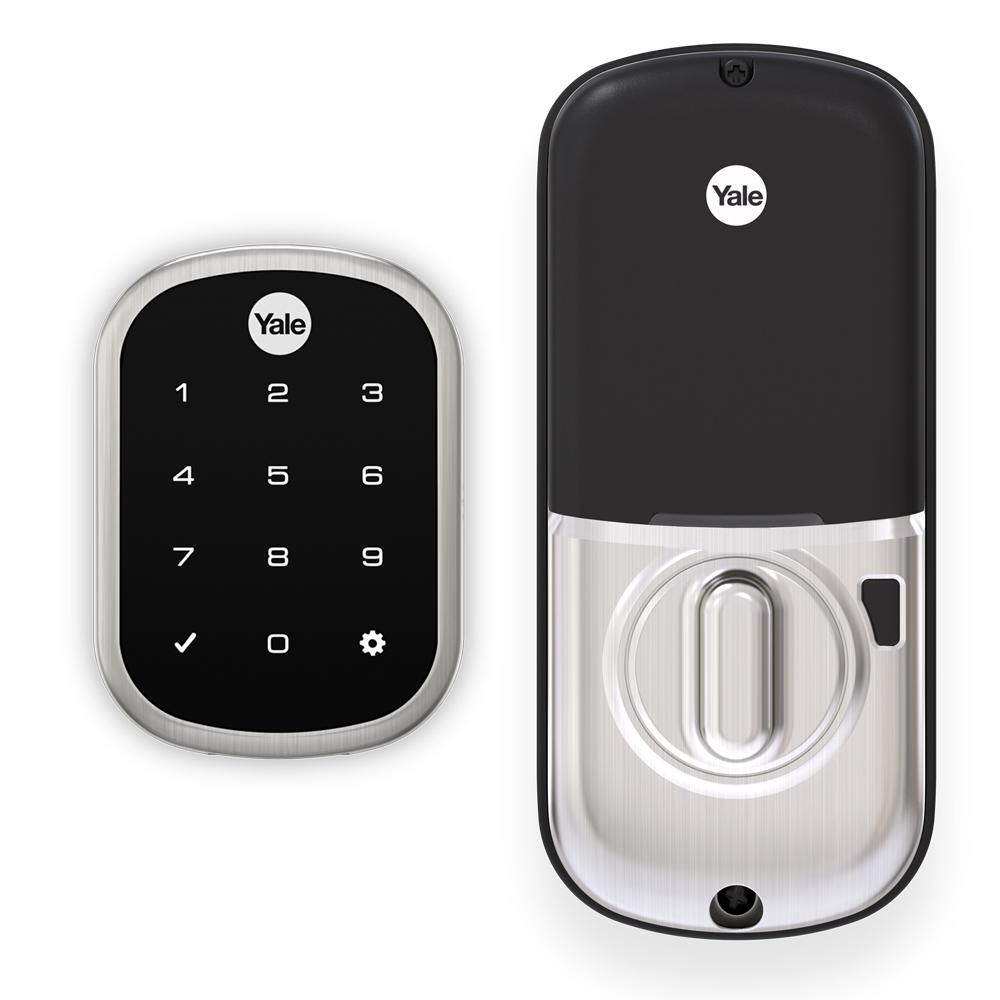

The LOCKWOOD Z-Wave deadbolt lock with touchscreen combines a highly secure lockset with an elegant electronic interactive touchscreen, which allows users to access their premises effortlessly with manual control or remote automated control. Designed for seamless integration with any Z-Wave product or automated control systems. Monitor the status of this device and usage through a centralized controller. Voice guided programming makes set up very easy as well as updates to user information.

Forget carrying around keys; lock and unlock your home with your smartphone. Share digital keys with friends and family, view access history and manage user settings, all from your Yale Assure app.

Controlled via the Yale Assure App, Yale’s “Twist and Go” function allows users the unique ability to unlock their door by twisting their smart phone when within Bluetooth range. The “Twist and Go” feature protects you and your family from unintended unlocking. Also offering a backlit touch screen keypad, users have the option of entering a PIN code to unlock the door.

An automatic Re-lock function is available so that when the latch is retracted, the lock will automatically lock after a specified period of time.

For those times when you don't have your smartphone with you, unlock by entering your unique 4-8 digit pin code on the touchscreen keypad.

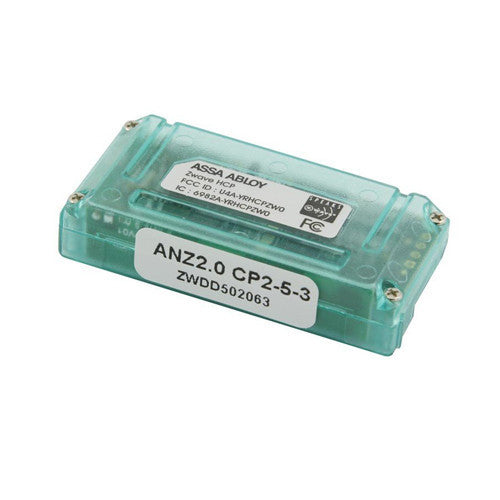

The Yale Assure digital deadbolt with Bluetooth can be upgraded with a Yale Assure Z-Wave Network Module to seamlessly integrate into most home automation and alarm systems.

Available in Keyless Satin Chrome finish and Key override Satin Chrome finish.

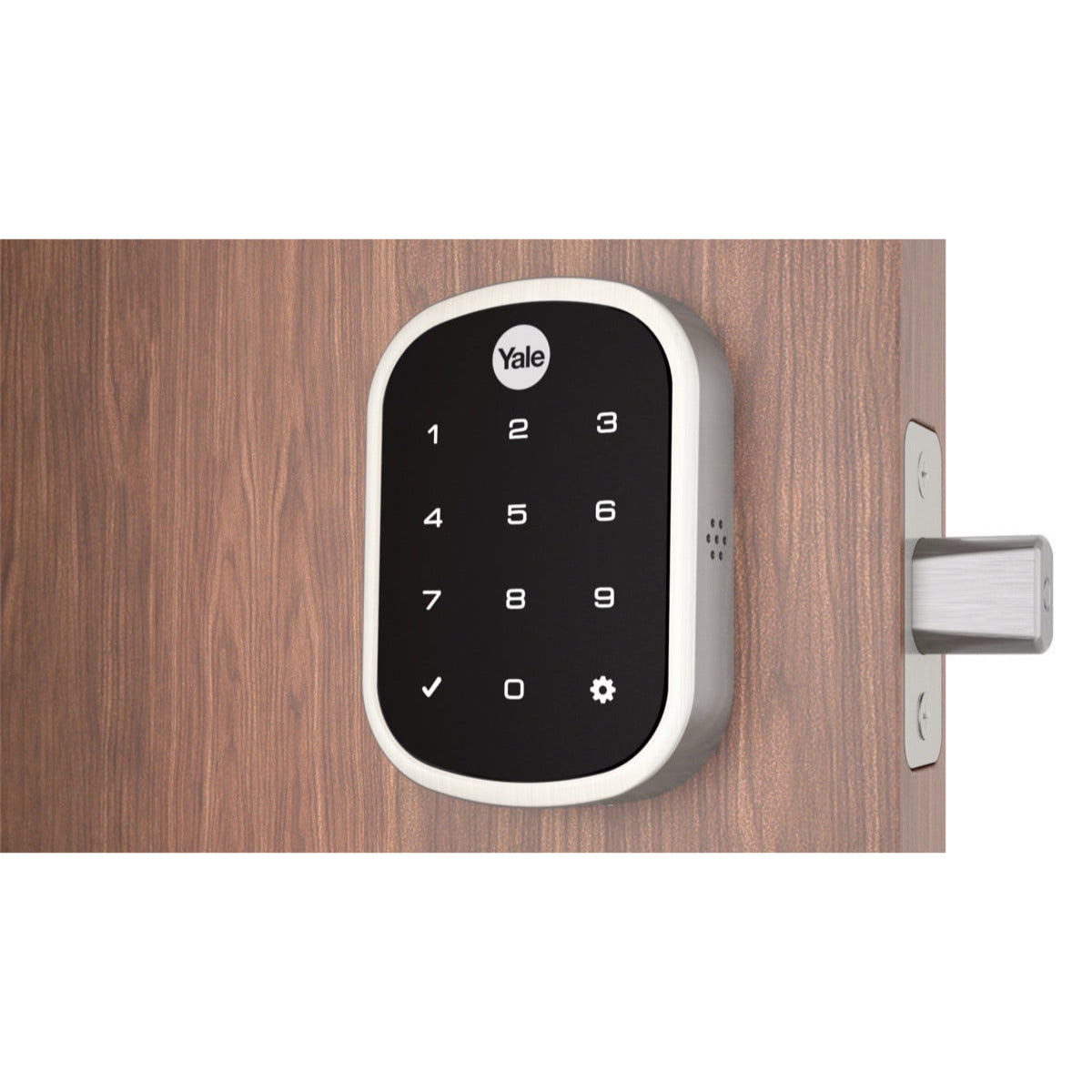

The LOCKWOOD Z-Wave deadbolt lock

This lock will fit in the place of your existing deadbolt and is compatible with all standard interior and exterior doors. Tapered features of the deadbolt allow it to be used even in applications where the door is not perfectly aligned. The wireless Radio Frequency (RF) range of this lock is 50 -100 feet and will need to be at least that close to another network controller in the Wireless Z-Wave System. This RF range can be influenced by surrounding objects and may be extended depending on the location of other Z-Wave devices in the system. If this unit is to be controlled and managed by a single network controller, it is recommended that this Z-Wave lock be programmed through the centralized User Interface (UI) using a PC or hand-held device. This will ensure the best and most reliable communication to and from the deadbolt lock and centralized controller.


Product Highlights

Share Keys - Share or delete digital keys using the app. Includes 5 digital keys with download.

Manage Users - Set unique access schedule for each user and view a history of who accessed your home, and when.

Create Unique Pin Codes - Create up to 12 unique PIN codes, adjust lock features and personalise your settings.

Twist & Go Unlocking - Rotate your smartphone 90 degrees upon approaching the door and touch the keypad to unlock.

Touchscreen Keypad - Unlock by entering your PIN code and lock-up with a smiple tap of the keypad.

100% key Free - No cylinder means no lost keys and no pick and bump break-ins. You don't need to worry about house keys with the Assure Lock -Your phone is your new key and the door can always be unlocked using the touchscreen keypad.

Simple Installation - Replace your existing deadbolt in minutes with just a screwdriver.

Uses 128 bit AES encryption for security
• Slim design, LED visual and audible  feedback
• Schedule Setting/Logging
• Can be used in new and retrofit houses
• Integrates with certified Z-Wave controllers in Australian version (921.42MHz):

VERA 3 / Lite
Simon XT
Advance remote Controller
Fibaro HC2


This lock may not be used on moving doors, i.e., Cars, Trains or similar applications. The lock is designed for residential and commercial applications only and door sizes between 32-50mm. We highly recommend that a secondary entrance is required in the unlikely event of total failure. This lock may not be used on fire doors.

Why choose a Wireless Digital Deadbolt?

Safety - Never carry keys
Keyless PIN code access ensures security whilst away and allows people entrusted with a PIN code to gain entry with the simple push of a button.

Security - Resting easy all night long
Privacy mode provides ease of mind by disabling the keypad to ensure that no one can enter the property from outside while you are sleeping, with the exception of close family entrusted with a key.

Remote Management - Remote access control
The Wireless Digital Deadbolt lock status can be viewed and controlled via a PC, Notebook, Tablet or Smartphone. Simply lock or unlock your door from anywhere in the world.

Receive a text message or email alert when the door is accessed to know that your loved ones have arrived home safely (when integrated with Remote Management Software).

Convenience - Trigger other devices
Integration with Remote Management Software will enable you to turn on other devices when you open the door using your unique PIN code including:

  • Unlock all doors
  • Turn on the interior house lights
  • Turn on the TV
  • Adjusts the thermostat to 21°C
  • Close the curtains

Control - Building automation & integration
The Lockwood Wireless Digital Deadbolt has been designed to easily integrate with a variety of wireless building control and security systems when used with Z-Wave or ZigBee wireless network modules. Remote management puts you in control of protecting what is valuable to you from anywhere and at anytime.

Lock Functionality

Wireless Network Connectivity
This product can be integrated with building automation systems when used with Z-Wave or ZigBee wireless network modules. When connected to a network the lock can be controlled remotely.

Illuminated touch screen keypad
The touch screen keypad has no mechanical buttons which means no trace of your secret pin code.

Pin Code Allowance
One master pin code will manage up to 250 user codes when used with a wireless network module or 25 user codes when not networked.

Voice Guided Programming
Voice Guided Programming will audibly provide step by step programming instructions.

One Touch Locking
Conveniently lock your door by simply touching the keypad or use the automatic locking function.

Low Battery Warning
When battery power is below 30%, the low battery icon will begin flashing.

Tamper Alert
An audible alarm sounds if attempting to forcibly remove outside lock from door.

Automatic Re-locking
This selectable feature will automatically extend the bolt into the locking position after a 30 second delay.

User Interface Functionality

View/Change Lock Status

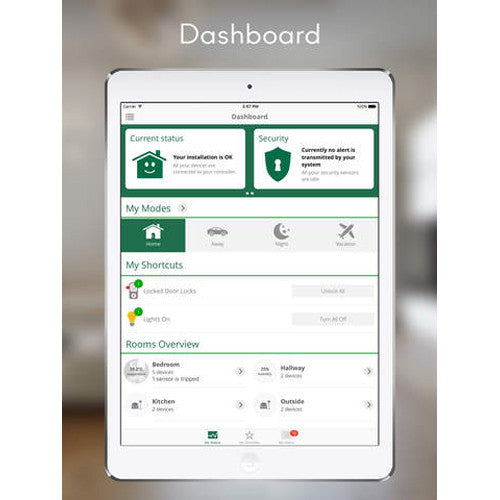

The lock status can viewed or changed on a Smart Phone, Tablet or PC. From anywhere in the world, remotely unlock the door for a neighbour or a caregiver.

Set-up each lock and control the management of users on every door where a Lockwood Wireless Digital Deadbolt is installed.

View the history of who comes and goes at each door.

Trigger other devices
Use the lock to trigger other devices within the building such as lights, thermostat, alarm system and more.

Text/Email Alerts
Receive text/email alerts when the kids get home from school

Available functions may vary based on your home control software.

Product Specifications

Backset Adjustable 60-70mm
Battery type AA
Body / Case Material Zinc
Bolt Type / Function Deadbolt
Door Thickness Range 35mm to 50mm
Door Preparation 25mm latch hole and 54mm lock hole
Lock Type Deadbolt
No. of Keys 5 digital keys supplied
Product Cabability Android devices running 4.3 or later, iOS devices running 9.0 or later
Standard Finish Satin Chrome
Warranty / Guarantee Yale 1 year Electomechanical
Key Profile (Keyed version) C4
Outside Temperature range 30°C to 60°C
Inside Temperature Range 15°C to 70°C
Operating Humidity

up to 95%


RCM & CE certification

AS/NZS 61000.6.3 2012



Yale Assure Lock™ Keyless
