NFC Metal or Carbon Fiber NTAG 216 ID card Internet Business card Digital Business card

:) Phoneinc

$89.00

This variant is sold out please select another

  • NFC Metal or Carbon Fiber NTAG 216 ID card Internet Business card Digital Business card
  • NFC Metal or Carbon Fiber NTAG 216 ID card Internet Business card Digital Business card
  • NFC Metal or Carbon Fiber NTAG 216 ID card Internet Business card Digital Business card
  • NFC Metal or Carbon Fiber NTAG 216 ID card Internet Business card Digital Business card
  • NFC Metal or Carbon Fiber NTAG 216 ID card Internet Business card Digital Business card
  • NFC Metal or Carbon Fiber NTAG 216 ID card Internet Business card Digital Business card
  • NFC Metal or Carbon Fiber NTAG 216 ID card Internet Business card Digital Business card



NTAG 216 have been developed by NXP® Semiconductors as standard NFC tag ICs to be used in mass-market applications such as retail, gaming, and consumer electronics, in combination with NFC devices or NFC-compliant Proximity Coupling Devices. NTAG 213, NTAG 215, and NTAG 216 (from now on, generally called NTAG 21x) are designed to fully comply to NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications.

Target applications include Out-of-Home and print media smart advertisement, SoLoMo applications, product authentication, NFC shelf labels, and mobile companion tags.

Target use cases include Out-of-Home smart advertisement, product authentication, mobile companion tags, Bluetooth® or Wi-Fi pairing, electronic shelf labels, and business cards. NTAG 21x memory can also be segmented to implement multiple applications simultaneously.

Thanks to the high input capacitance, NTAG 21x tag ICs are particularly tailored for applications requiring small footprints, without compromising on performance. Small NFC tags can be more easily embedded into, e.g., product labels or electronic devices.

The mechanical and electrical specifications of NTAG 21x are tailored to meet the requirements of inlay and tag manufacturers.



Contactless energy and data transfer

Communication to NTAG 21x can be established only when the IC is connected to an antenna.

When NTAG 21x is positioned in the RF field, the high-speed RF communication interface allows the transmission of the data with a baud rate of 106 kbit/s.

Simple deployment and user convenience

NTAG 21x offers specific features designed to improve integration and user convenience:

  • The fast read capability allows scanning the complete NDEF message with only one FAST_READ command, thus reducing the overhead in high throughput production environments
  • The improved RF performance allows for more flexibility in the choice of shape, dimension, and materials
  • The option for 75 μm IC thickness enables the manufacturing of ultrathin tags, for a more convenient integration in, e.g., magazines or gaming cards

Security

  • Manufacturer programmed 7-byte UID for each device
  • Preprogrammed Capability container with one-time programmable bits
  • Field programmable read-only locking function
  • ECC-based originality signature
  • 32-bit password protection to prevent unauthorized memory operations

NFC Forum Tag 2 Type compliance

NTAG 21x IC fully complies with the NFC Forum Tag 2 Type technical specification and enables NDEF data structure configurations.

Anti-collision

An intelligent anti-collision function allows operating more than one tag in the field simultaneously. The anti-collision algorithm selects each tag individually and ensures that the execution of a transaction with a selected tag is performed correctly without interference from another tag in the field.

Features

  • Contactless transmission of data and supply energy
  • Operating frequency of 13.56 MHz
  • Data transfer of 106 kbit/s
  • Data integrity of 16-bit CRC, parity, bit coding, bit counting
  • Operating distance up to 100 mm (depending on various parameters as, e.g., field strength and antenna geometry)
  • 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
  • UID ASCII mirror for automatic serialization of NDEF messages
  • Automatic NFC counter triggered at a reading command
  • NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
  • ECC-based originality signature
  • Fast read command
  • True anti-collision
  • 50 pF input capacitance
  • 924 bytes organized in 231 pages with 4 bytes per page
  • 888 bytes freely available user Read/Write area (222 pages)
  • 4 bytes initialized capability container with one-time programmable access bits
  • Field programmable read-only locking function per page for the first 16 pages
  • Field programmable read-only locking function above the first 16 pages per 16 pages.
  • Configurable password protection with an optional limit of unsuccessful attempts
  • Anti-tearing support for capability container (CC) and lock bits
  • ECC supported originality check
  • Data retention time of 10 years
  • Write endurance 100,000 cycles

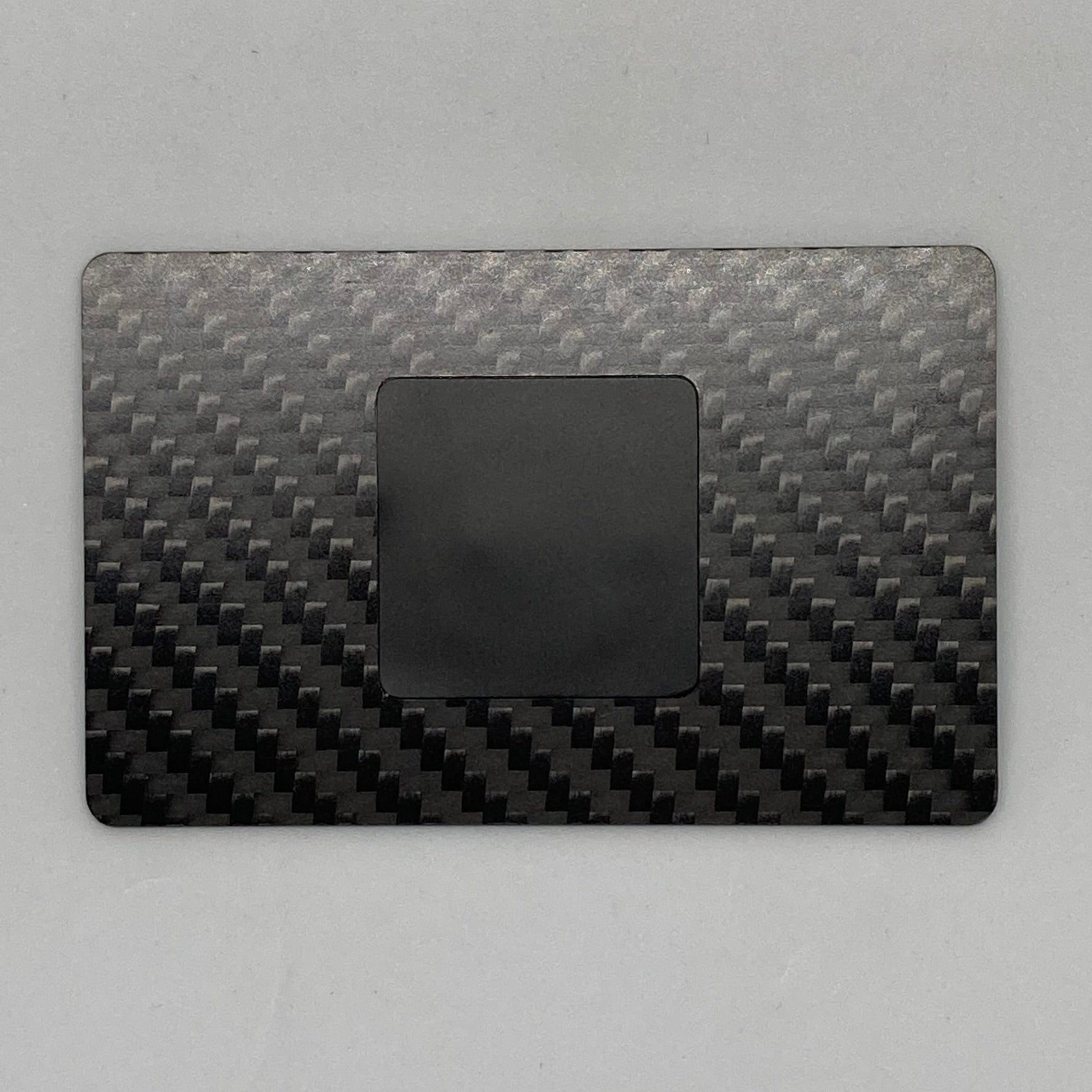

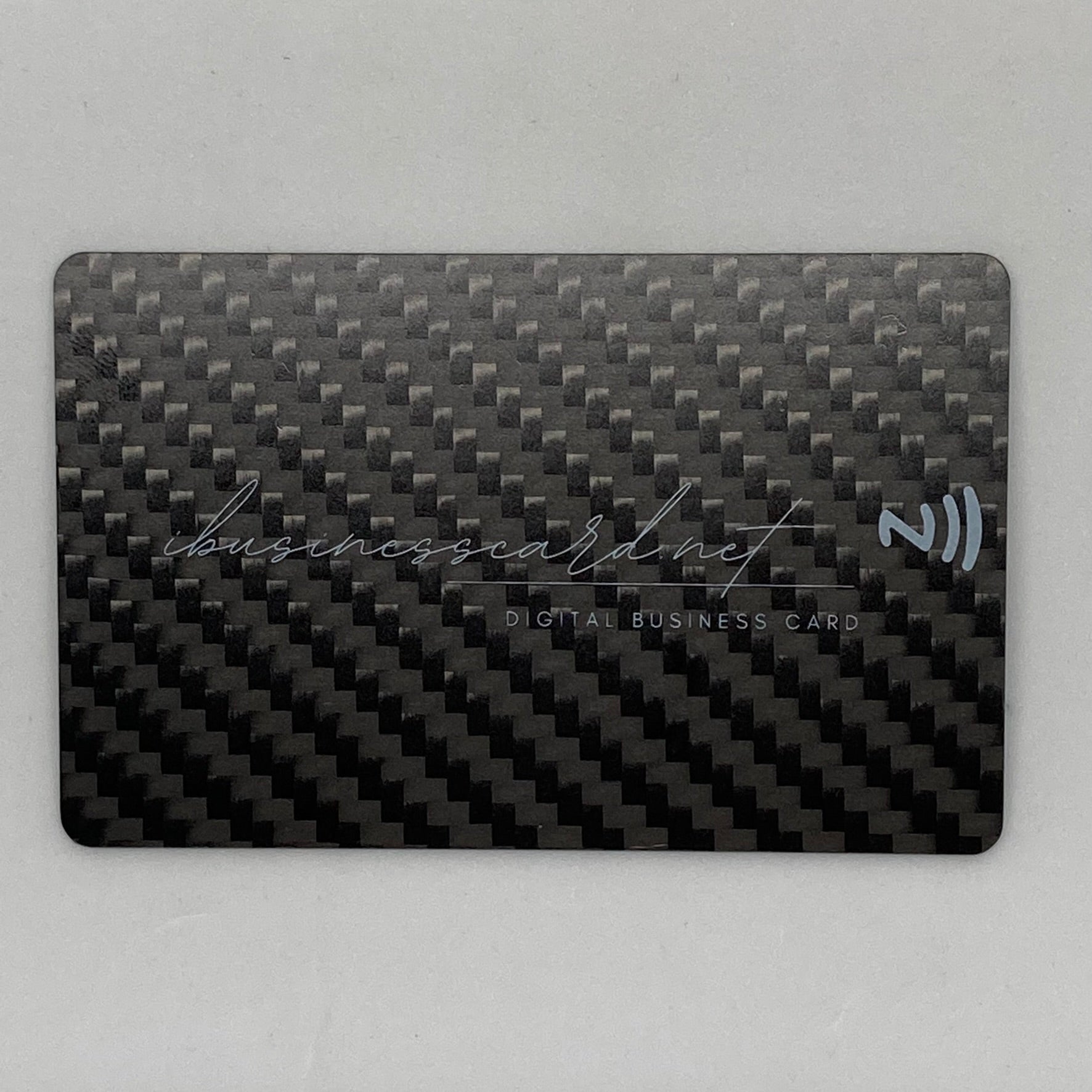

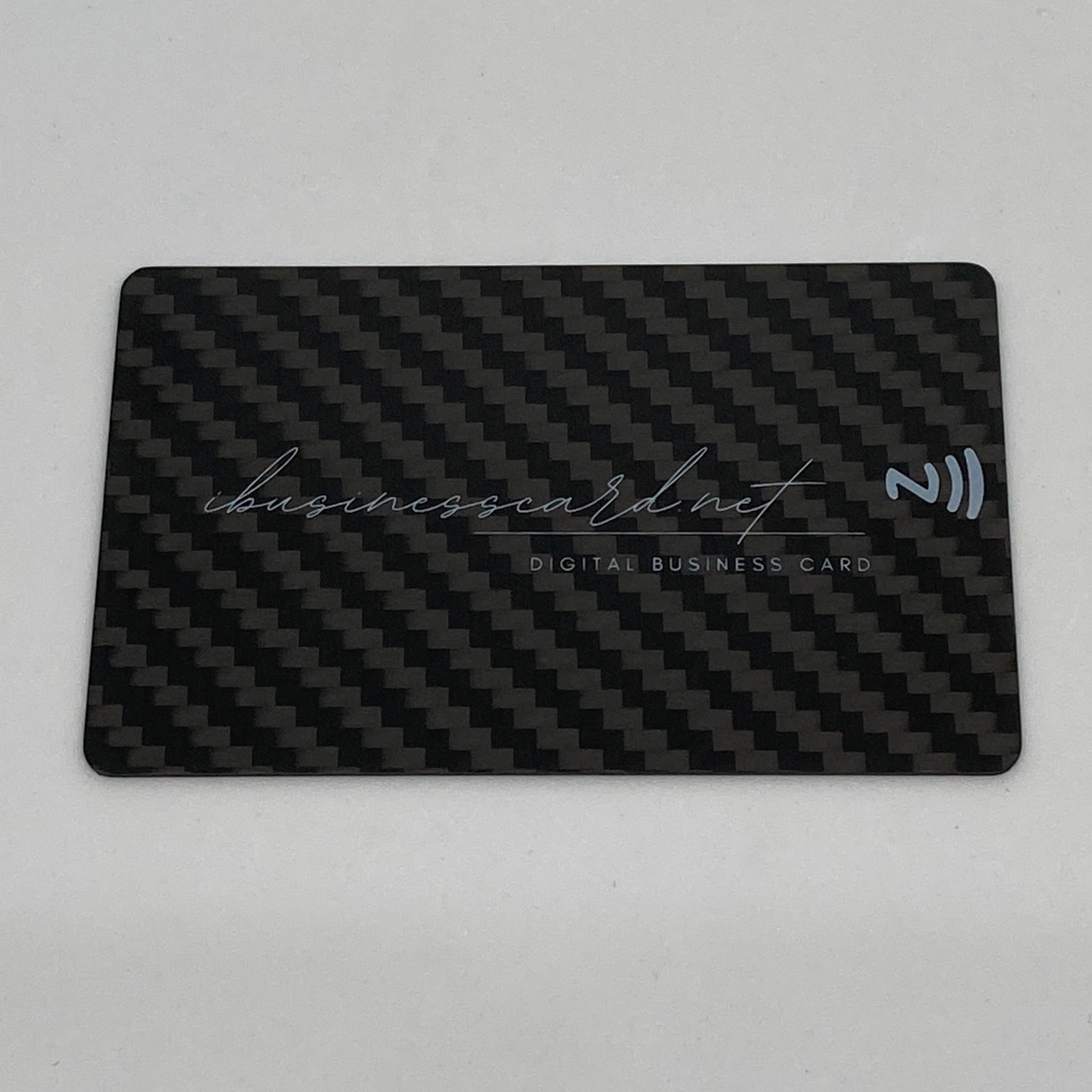

Material: Carbon Fiber

Dimension: 85.5*54*0.8mm

Weight: 9 g

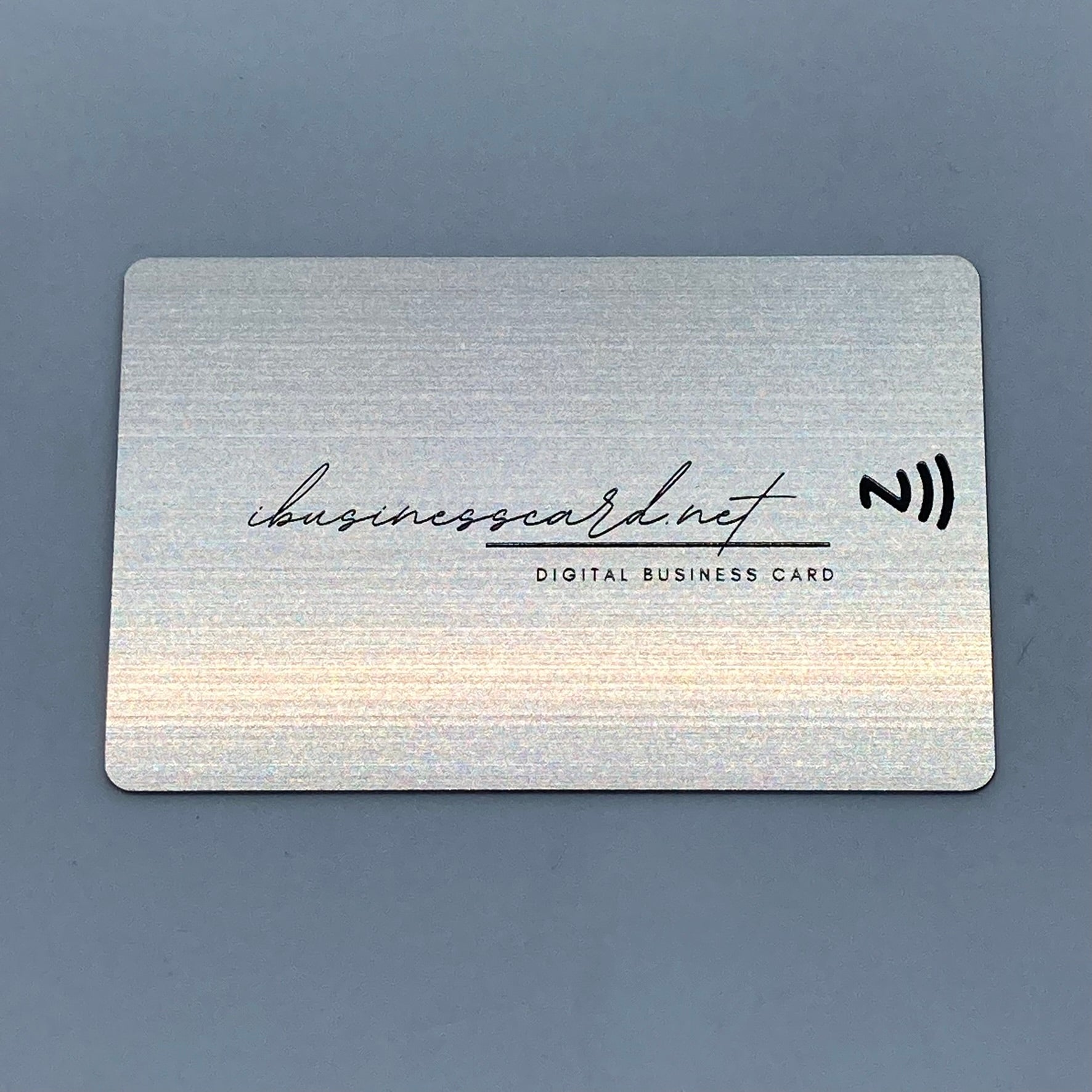

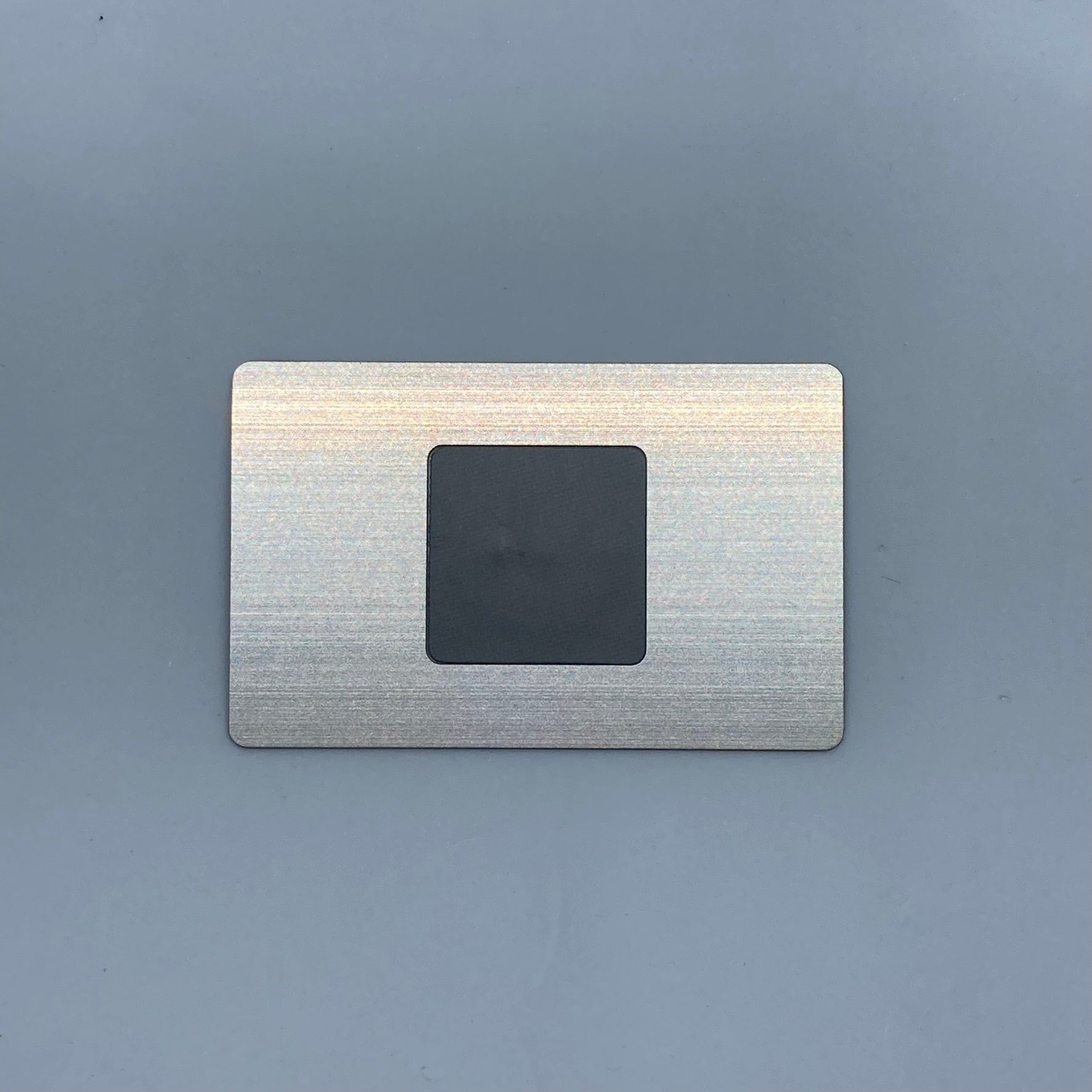

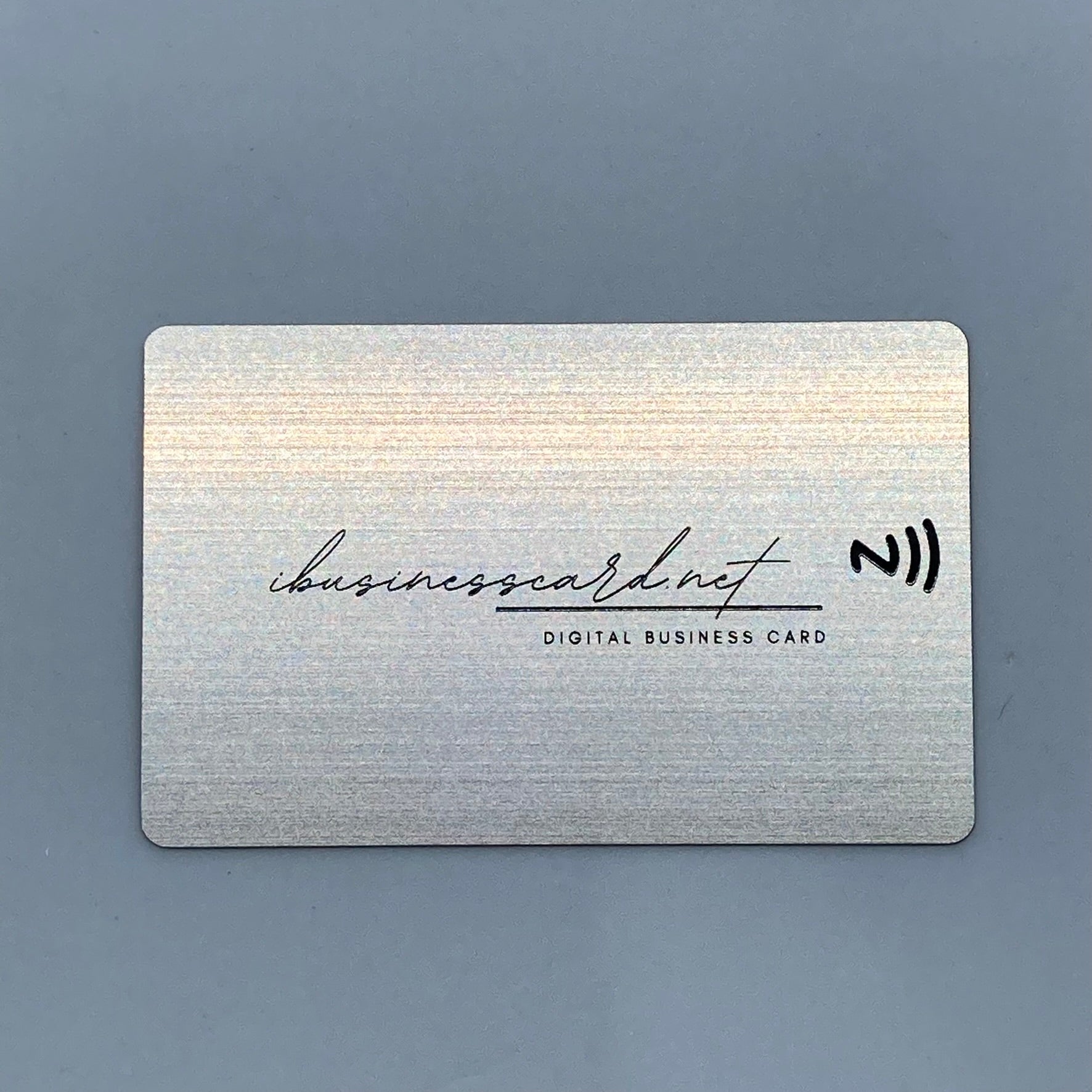

Material: stainless steel

Dimension: 85.5*54*0.8mm

Weight: 28g



* visit ibusinesscard  .  net for digital business card hosting
