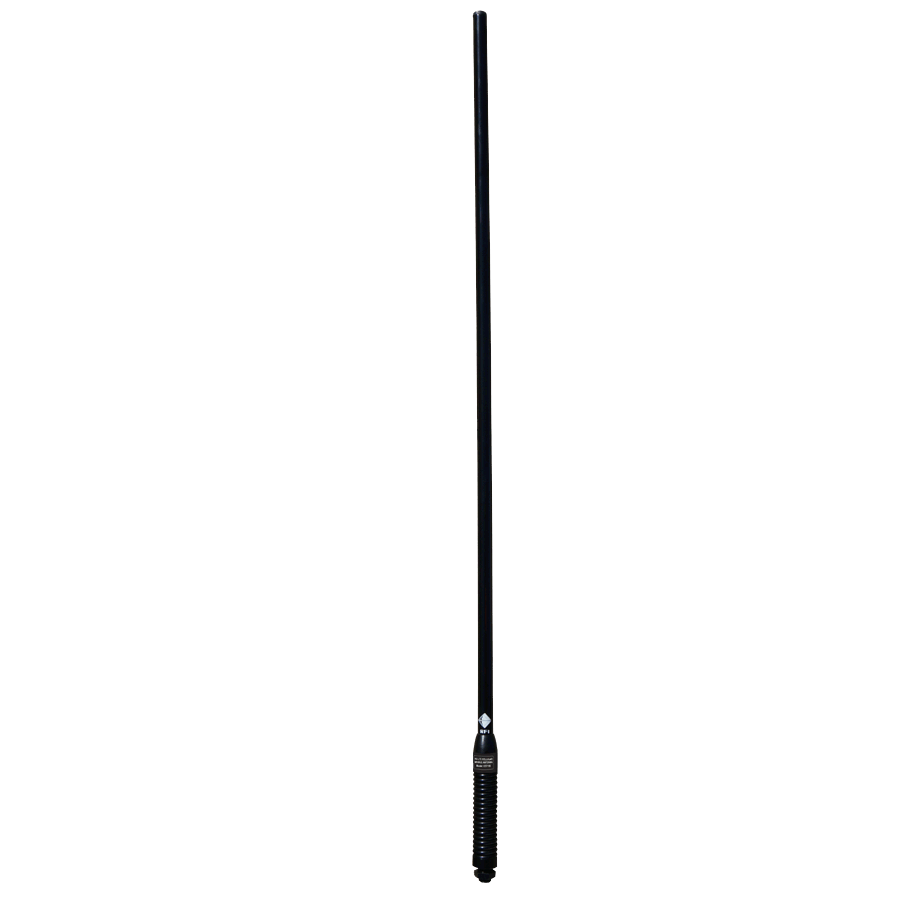

RFI CD7194-B Broomstick 3G+4G+4GX Antenna 655mm -Black



This product is currently sold out

RFI CD7194-B 4G LTE Cellular Mobile Antenna 698-960 & 1710-2700MHz (All Black) 655mm

With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD7194 Series can be installed on a number of mounting brackets and are ideal for installations in
commercial vehicles, four wheel drives and trucks.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.

• Patented PCB based collinear design offering the ultimate in pattern and gain stability
• Ideal for all new 4G LTE networks with true multi-band coverage
• High gain across all bands making it suiting fringe and rural applications


Frequency: 698-960MHz / 1710-2200MHz / 2300-2700MHz
Maximum Power: 10 Watts
Band 4G LTE
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 5.0 / 4.5 / 5.5
Cable and Connector 5m of 9006 low loss cable with FME
Suggested Installation Bullbar, guard, mirror
Radome Diameter mm 15.6
VSWR <2.5:1
Length mm 655
