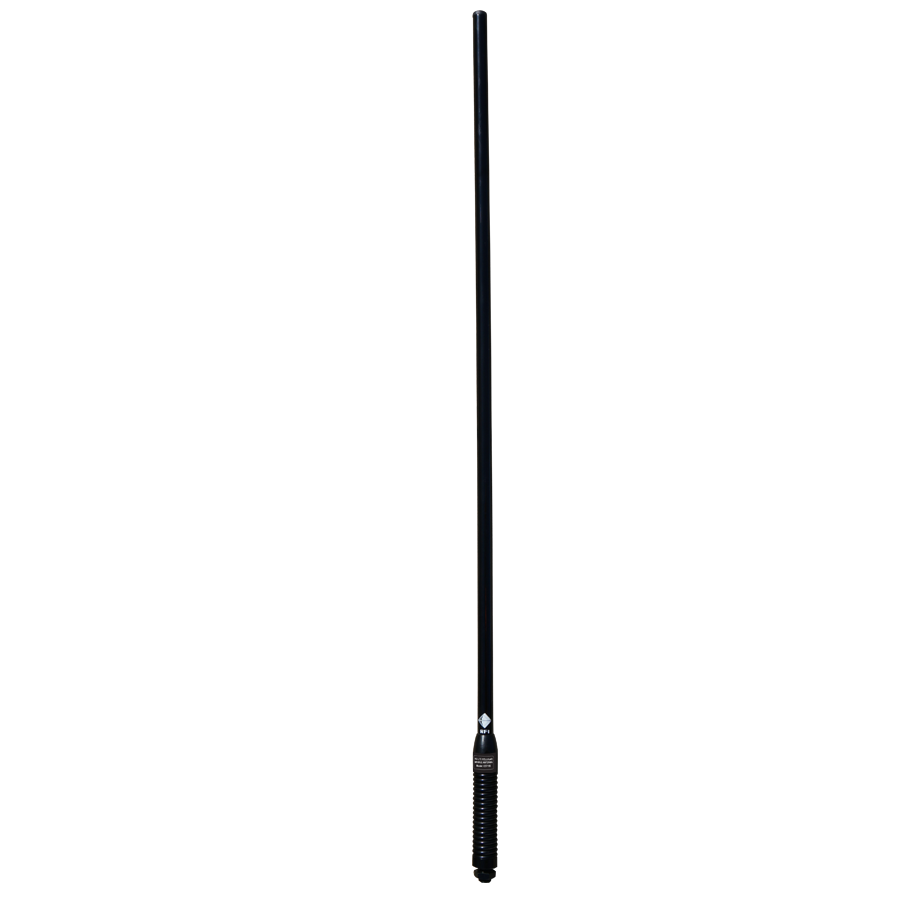

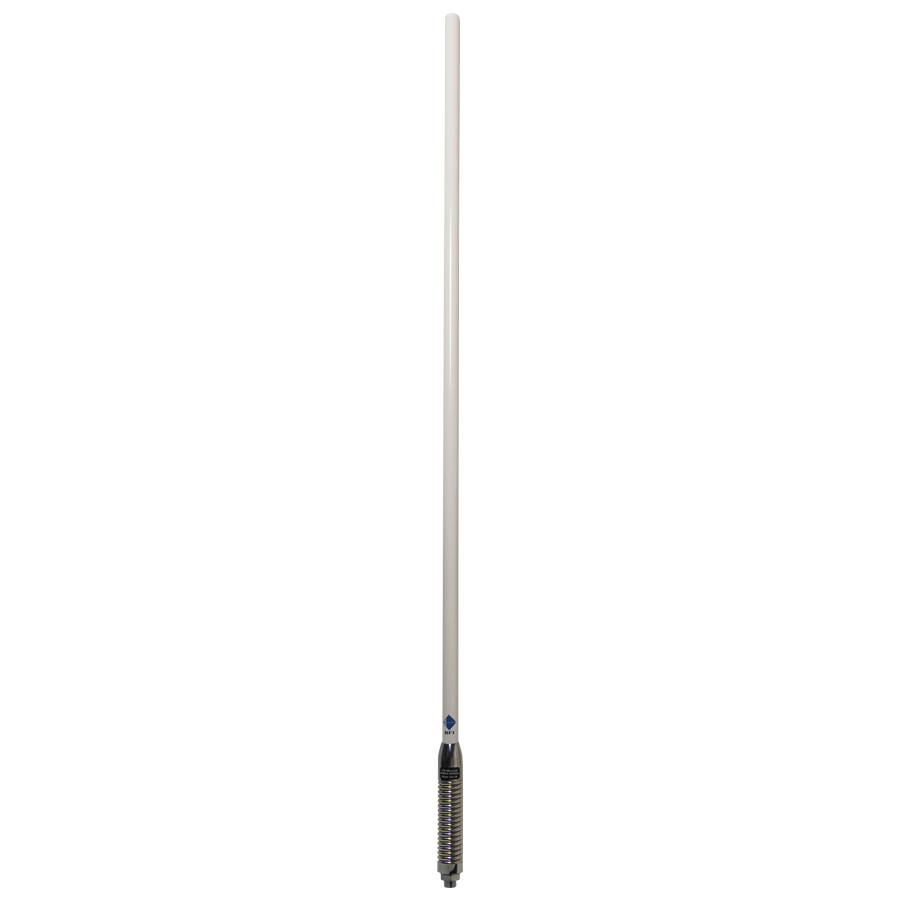

RFI CD7197 4G LTE Cellular Mobile Antenna 698-960 & 1710-2700MHz 1140mm Black/White
With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD7100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
The evolution continues with the release of the CD7100 Series 4G LTE cellular mobile antenna. Like the CD2100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
|Frequency:||698-960 / 1710-2170 / 2300-2700 MHz|
|Nominal Gain dBi||7.5 / 4.5 / 5.5|
|Radiator Material:||Flexible PCB|
|Cable and Connector||5m 9006 Low Loss Cable Terminated with FME Female Connector|
|Suggested Installation||Bull Bar, Guard, Boot|
|Radome Diameter mm||15.6|
|Packaging||Retail Hand Sell|
