RFI CD34-71-53 UHF CB (477 MHz) Mopole™ Antenna - MBC Mount (4 dBi)



This product is currently sold out

RFi CD34-71-53 UHF CB (477 MHz) Mopole™ Antenna - MBC Mount (4 dBi)

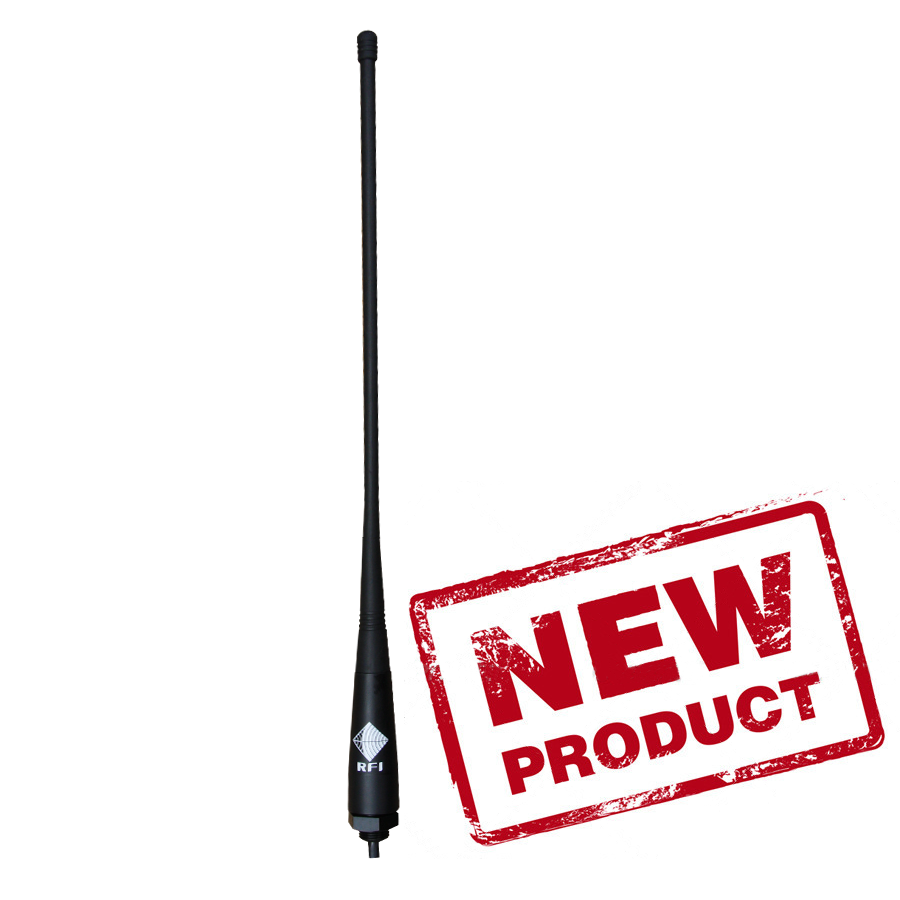

The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.

The antenna is available in a stud mounted version or MBC base with removable whip. Both are supplied with 5 metres RG58 C/U cable & factory terminated with a FME female connector for ease of installation. Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.


• Ground plane independent design allows installation in almost any location
• Available in stud or MBC mount
• Robust UV stable base & flexible whip


Band 477MHz
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 4
Tuning Supplied pre-tuned
Power W 50
Cable and Connector 5.0m RG58 low loss cable fitted with FME female connector plus supplied with an FME male to UHF male adaptor.
Whip Material Stainless Steel braid over moulded with UV resistant TPU
Suggested Installation Bracket
Whip Length mm 330
VSWR <1.5:1
Mounting 13mm threaded stud & stepped nut
