RFI CD5000-B UHF CB Mobile 477mHZ Broomstick Antenna Black - 900mm

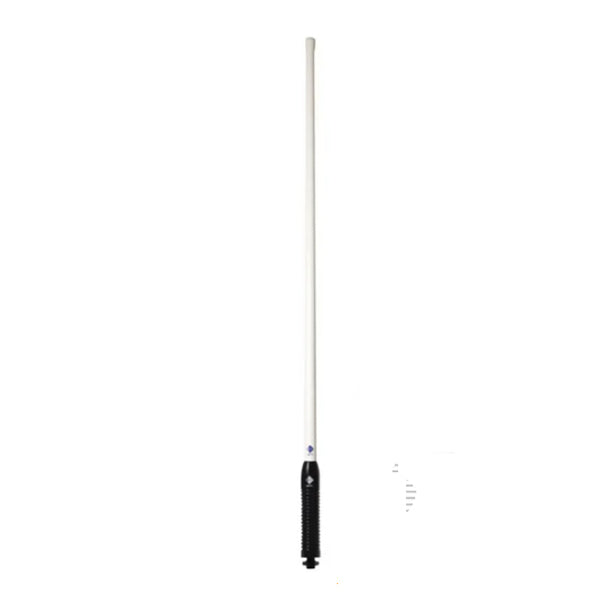

This antenna is extremely robust in design with the patented PCB designed radiating element housed in a black or white (CD5000 W) fibreglass radome fitted to an integral heavy duty electro-polished stainless steel spring.
With a 13mm stud mount and ground plane independent design, this antenna may be installed onto a number of mounting brackets such as mirror, bull bar, gutter or fender mounts and are ideal for installations in commercial vehicles, four wheel drives and trucks. They can even be used as a base station antenna due to their ground plane independent design.
Notes:Ā InĀ order to boost radio signal the following components are required:Ā Antenna, antenna mount,Ā booster and cable.Ā The antenna and booster mustĀ operate in the frequency band of the signal. Signal cable feeds signal fromĀ antenna to booster.
Features:
ā¢ 5 dB Gain ideal for fringe areas and country applications
ā¢ Robust design for heavy duty applications
ā¢ Available with GPS sub-assembly on request
ā¢ Patented PCB based collinear design offering the ultimate in pattern and gain stability
Specifications:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5.0m 9006 supplied with FME-101 connector terminated and UHF adapter supplied |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar or guarg |
| Whip Length mm | 900 |
| VSWR | <1.5:1 |
| Mounting | Threaded Stud |
