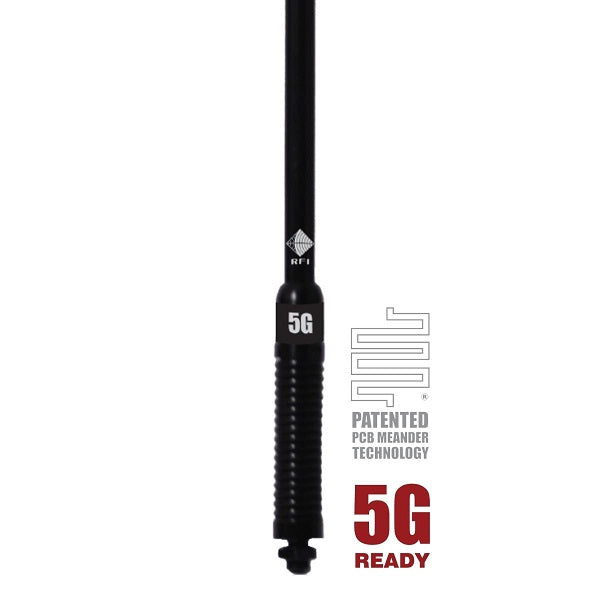

RFI CD8194-B 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 647mm
Estimated delivery between June 17 and June 19.
RFI CD8194-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 647mm
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
Specifications:
| Brand | RFI |
| Length [mm] | 645 |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Horizontal Beamwidth | Omni-directional |
| Tuned Bandwidth | Full. No tuning required |
| Mounting Area | 13-16mm Diameter Hole |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Power [W] | 10 |
| Cable And Connector | 5m of 9006 low loss cable with SMA(M) |
| Whip Material | Fibreglass |
| Packaging | Retail Hang Sell Bag |
| Colour | Black |
| Antenna Type | Collinears Ground Independent Meander Spring Mount Vehicle |
| Antenna Application | Vehicle Antenna |
| Antenna Configuration | SISO |
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CDQ8195-B (removable whip)
Also available SMA to FME Adapter
Mounting Bracket Options
