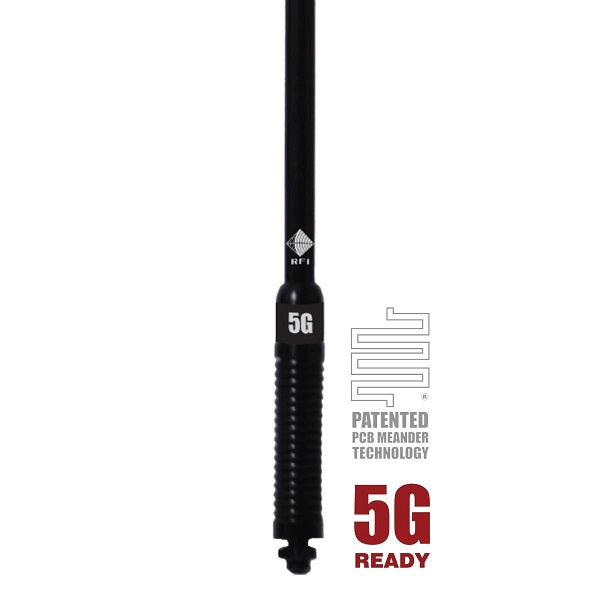

RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 918mm

~~$208.95~~ $202.94

Estimated delivery between May 05 and May 07.

Quantity

Minimum of 1 / increment of 1

RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 918mm

The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters especially when signal is poor.

The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.

The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.

KEY FEATURES:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.

- Ideal for new 5G/LTE networks with true multi-band coverage.

High gain across all bands making it suiting fringe and rural applications.

Specifications:

Colour	Black
Packaging	Retail Hang Sell Bag
Whip Material	Fibreglass
Cable And Connector	5m RG58 low loss cable (9006) terminated with SMA male connector
Frequency Range	1710-2170 2300 - 2700 3400 - 3800 698 - 960
Nominal impedance	50
Power w	10
Nominal Gain Dbi	6.5 / 4.5 / 5.5 / 6.5
Polarisation	Vertical
VSWR	<2.5:1
Mounting area	13-16mm diameter hole
Horizontal Beamwidth	Omni-Directional
Frequency MHz	698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Length [mm]	918mm
Operating Temperature Range [°C]	-40 to +85
Brand	RFI
Weight [kg]	0.82
