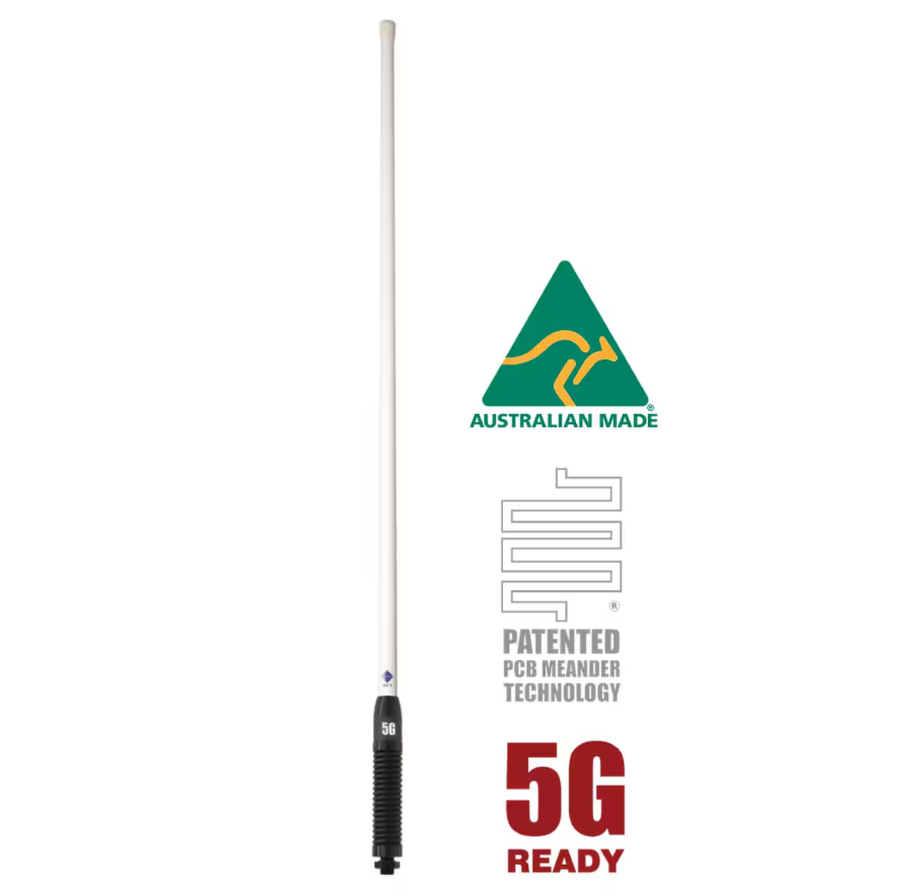

RFI CD8195-WB 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White/Black 918mm
Estimated delivery between June 14 and June 16.
RFI CD8195-WB 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White Radome Black Spring 918mm
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
Specifications:
| Colour | White Radome/Black Spring |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 low loss cable (9006) terminated with SMA male connector |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Horizontal Beamwidth | Omni-Directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Length [mm] | 918mm |
| Operating Temperature Range [°C] | -40 to +85 |
| Brand | RFI |
| Weight [kg] | 0.82 |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
