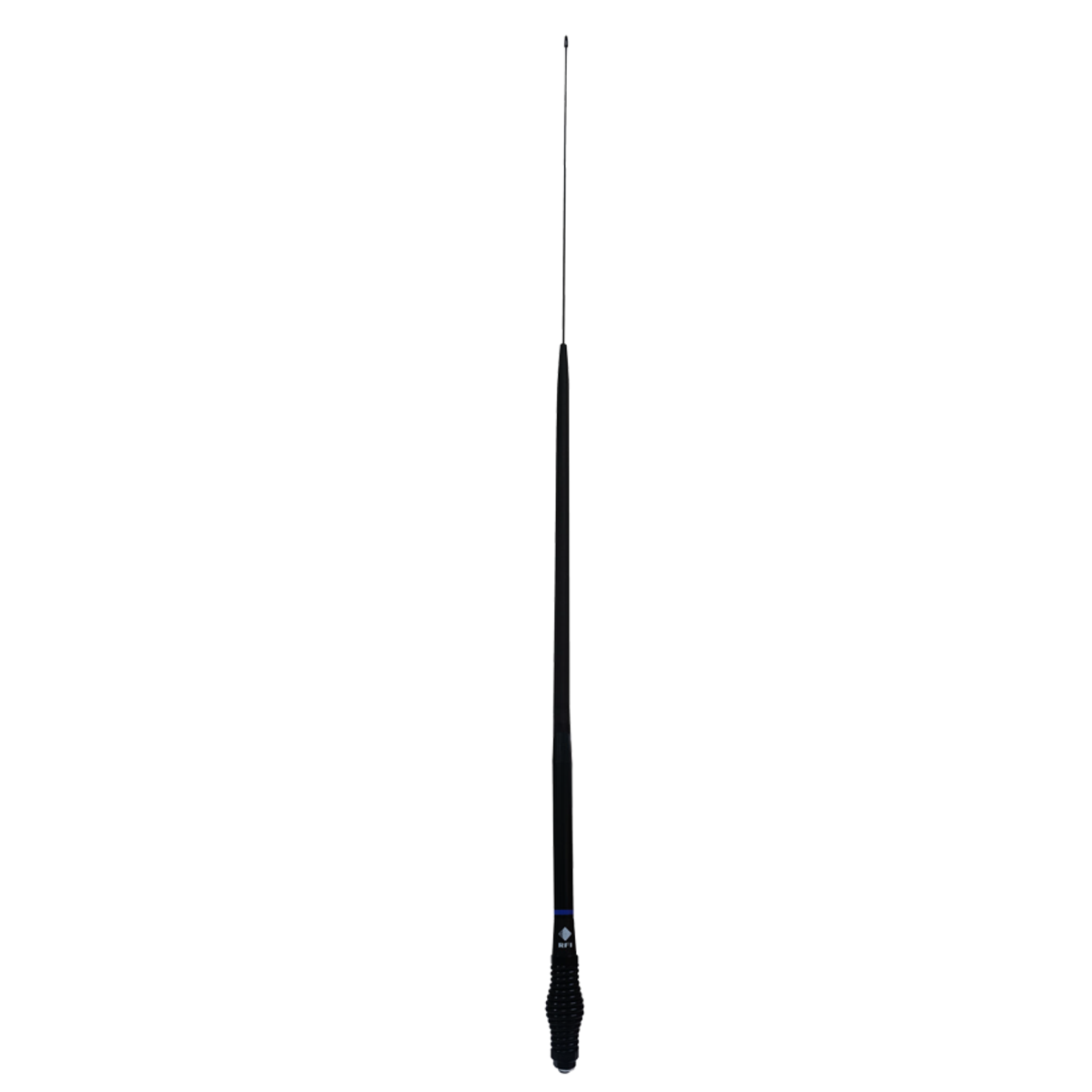

RFI CD961-71-75 UHF CB 6.5dB E/Feed Mopole Antenna (470-490MHz ); MSW35 5m FME(F) & UHF(M) Adaptor
Estimated delivery between June 13 and June 15.
RFI CD961-71-75 UHF CB 6.5dB E/Feed Mopole Antenna (470-490MHz ); MSW35 5m FME(F) & UHF(M) Adaptor
The CD900 Series are high performance elevated feed mobile antennas which can be used in virtually any mounting position. When gutter or roof bar mounted high above a vehicle CD900 series antennas deliver a full 6.5dB gain. When the CD961-71-75 gets mounted in other positions such as on a vehicle fender or bull bar the elevated feed design places a large portion of the antenna above the vehicle cabin providing good all round performance regardless of mounting position.
Features:
• Totally ground plane independent
• Elevated feed boosts radiating element above obstructions
• New MSW35 Phasemaster whip section provides unsurpassed performance and strength
• Quality construction - Choke assembly is crafted from solid brass and available in both chrome and black finishes
• Supplied pre-terminated with FME connector and UHF adaptor
• Can be used with a variety of mounts.
Specifications:
| Nominal Gain dBq | 6.5 |
| Packaging | Clear hanging bag |
| Whip Material | Polyurethene over moulded 17-7PH black chrome plated whip section on bright chrome choke |
| Whip Length mm | 850 |
| Cable And Connector | 5m Cellfoam with FME-101 terminated UHF adapter supplied. |
| Tuning | Supplied pre-tuned |
| Band | 470-490MHz |
| Frequency | 470-490 MHz |
| Power w | 100 |
| VSWR | <1.6:1 @ 470-490MHz & <1.25:1 @ 476-478MHz |
| Tuned bandwidth | Full. No tuning required |
| Frequency MHz | 470 - 490 |
| Mounting | Spring Assembly withThreaded Stud & Stepped Nut |
| Brand | RFI |
