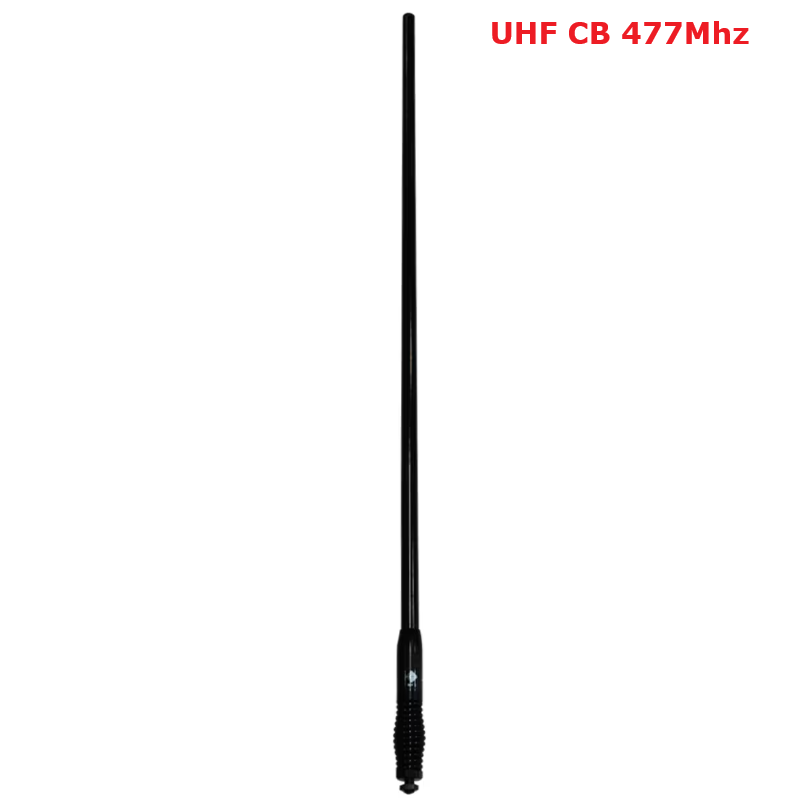

RFI CDQ5000-B Q-Fit UHF CB Collinear Antenna 1010mm -
Black with White Chrome Spring OR
White with Black Chrome Spring
The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar |
| Radome Diameter mm | 22.5 - 15.6 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 1010 |
| Mounting | Threaded Stud |
