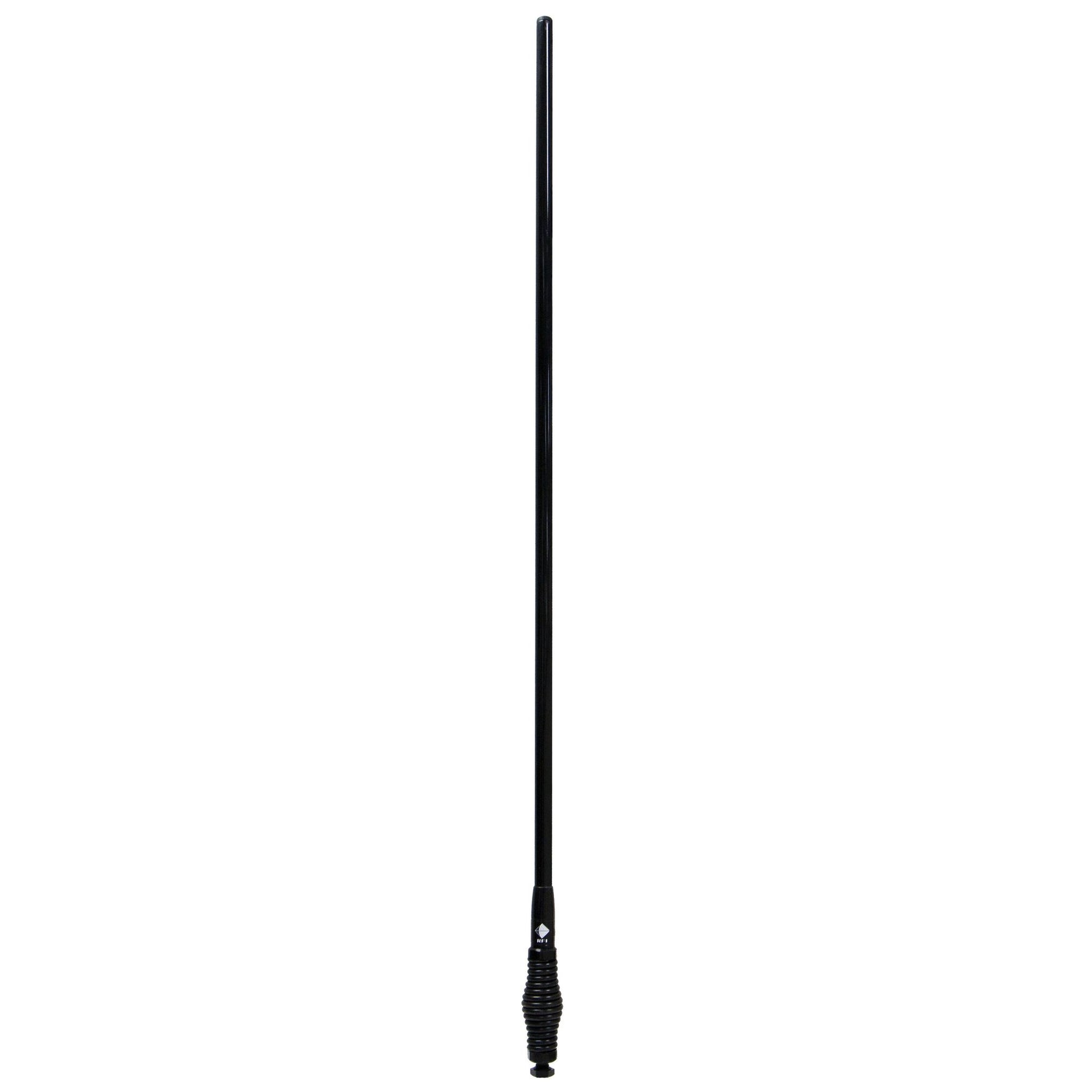

  • RFI CDR7195 - 4G LTE Cellular Mobile Antenna - 698-2700MHz 930mm B/W

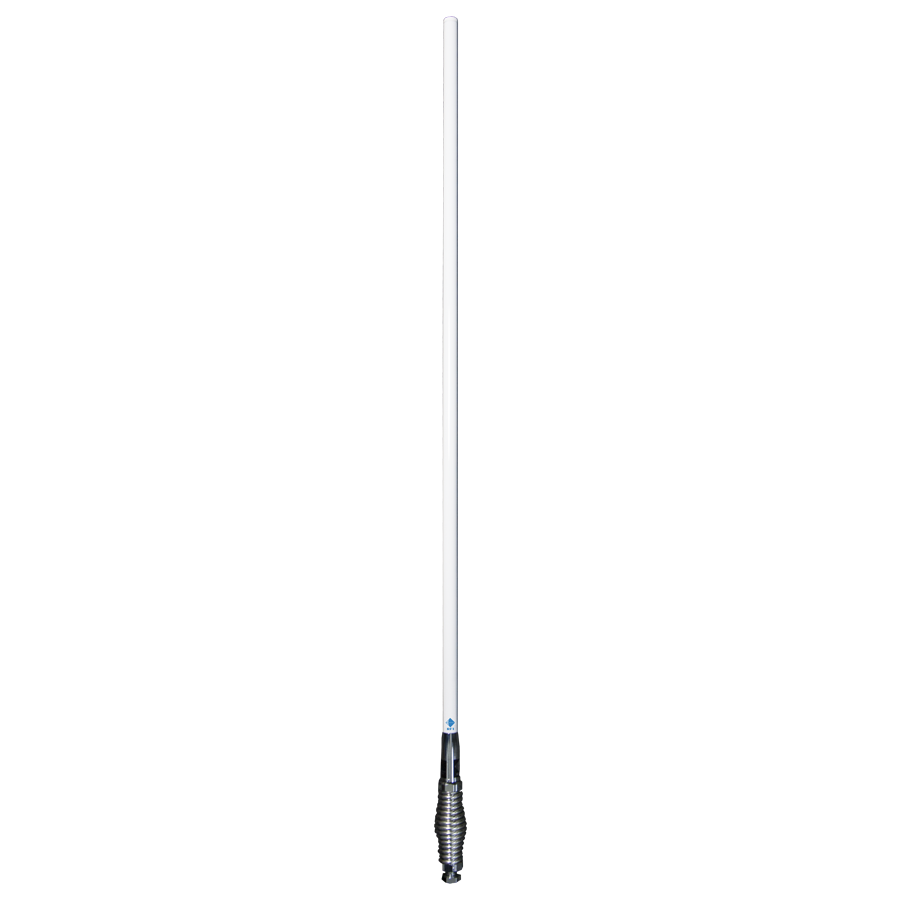

RFI CDR7195 - 4G LTE Cellular Mobile Antenna - 698-2700MHz 930mm - Black/White Chrome Spring

The CDR7195 4G LTE cellular mobile antenna utilises our patented Meander™ flexible PCB radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CDR7195 sits in between our market leading CD7195 and CDQ7195. It is basically a light duty CDQ7195 (i.e. uses our CD7195 16mm parallel radome and a CD900 Series spring assembly). The CDR7195 whip and be removed via the integrated N male connector in the whip and N female connector on the spring assembly.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.


  • Patented PCB based collinear design offering the ultimate in pattern and gain stability
  • Ideal for all new 4G LTE networks with true multi-band coverage
  • High gain across all bands making it suiting fringe and rural applications
  • Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security


Frequency: 698-960, 1710-2170 & 2300-2700MHz
Impedance: 50
Tunable Bandwidth Full
Nominal Gain dBi 6.5 / 4.5 / 5.5
Radiator Material: Flexible PCB
Power W 10
Cable and Connector 5m of 9006 low loss cable terminated with FME female connector
Radome Diameter mm 16
Packaging Retail Hang Sell
VSWR <2.5:1
Length mm 930
Mounting 13mm thread stud & nut
