RFI CDR5000-B UHF CB Collinear Antenna 930mm -

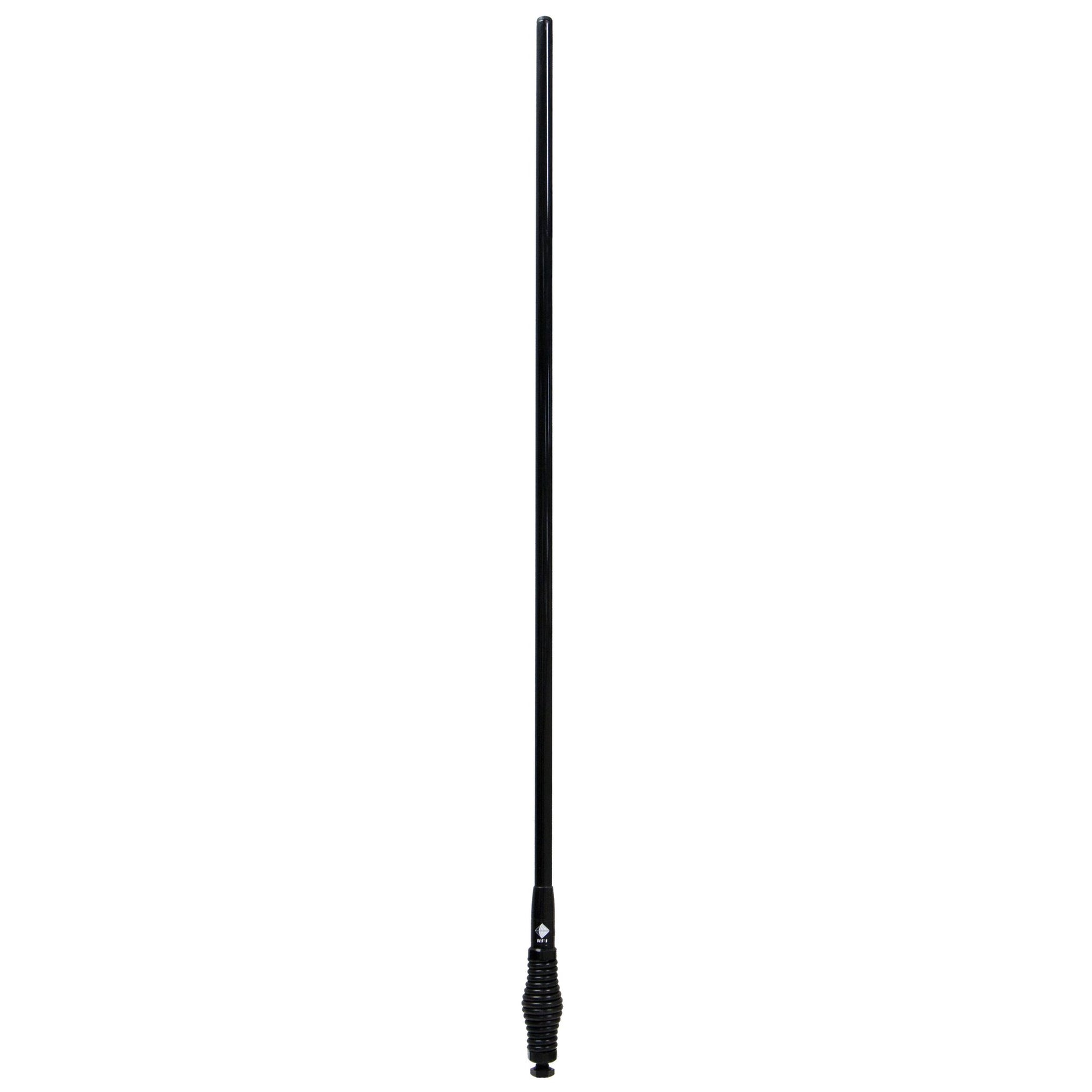

Black with Black Chrome Spring OR

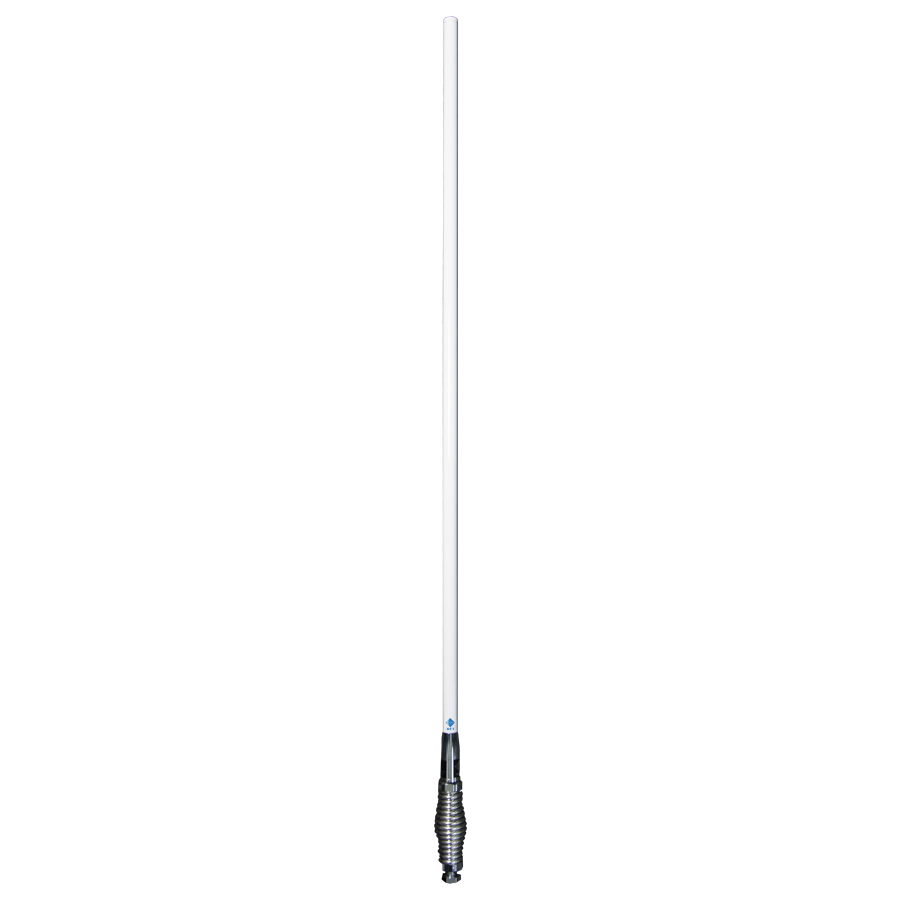

White with Bright Chrome Spring
The CRD5000 series is a light weight version of our CDQ5000 which is ideal for mounting on guards, mirrors or bull bars. It utilises our Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability and employs our Q-Fit® removable whip system.
The antennas we supplied with our medium duty spring assembly which included 5 metres of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
CDR5000-B Features:
• Patented PCB based Meander™ collinear design offering the ultimate performance & robustness.
• 5 dBi gain across the full 477 MHz UHF CB band.
• Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security
• Totally ground plane independent
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5.0m 9006 supplied terminated with an FME female connector and supplied with an FME to UHF adapter |
| Connector: | FME female |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Guard, mirror or bull bar |
| Whip Length mm | 930 |
| Radome Diameter mm | 16 |
| Packaging | Retail style plastic bag with header card |
| VSWR | <1.5:1 |
| Mounting | 13mm threaded stud |
