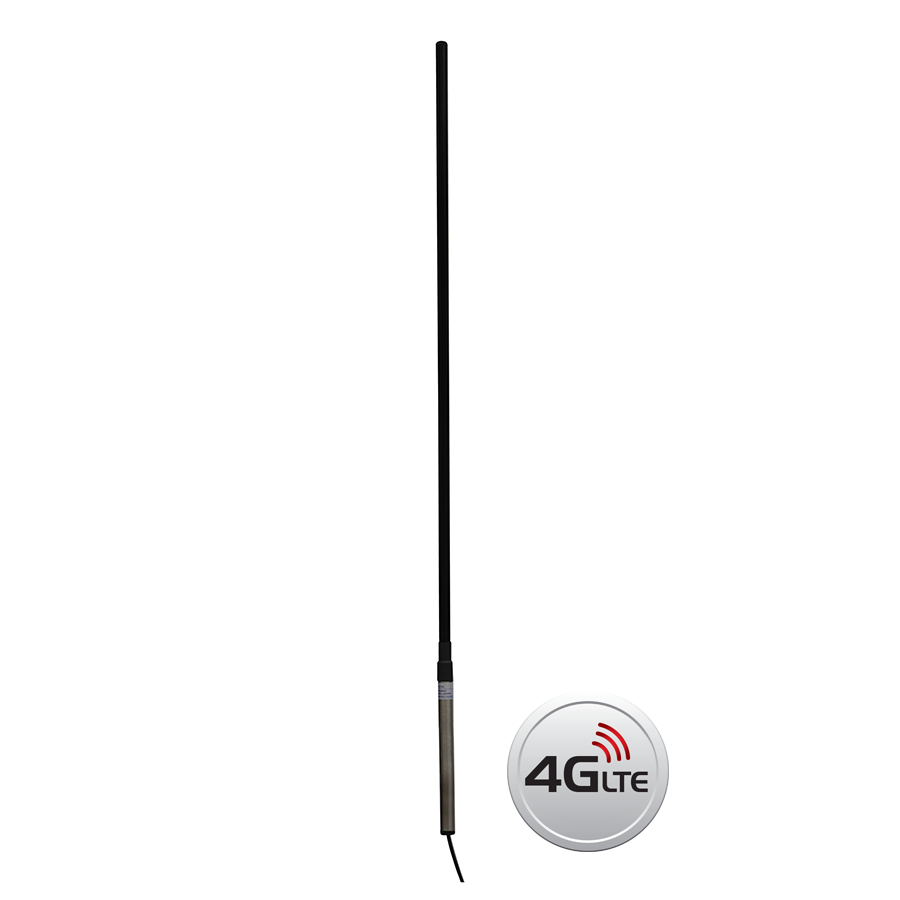

RFI COL-7195 Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX - 965mm

The evolution continues with the release of the COL700 Series 4G LTE cellular Meander™ collinear antenna. The secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

With a 200mm (x 19mm) stainless steel mounting tube, the COL7195 is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.

Notes: In order to boost radio signal the following components are required:  Antenna, antenna mount, booster and cable.  The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.


  • Patented PCB based colinear design offering teh ultimate in patter and gain stability
  • Ideal for all new networks with true multi-band coverage
  • High gain across 4Gx/4G+ band suiting fringe and rural application


Frequency: 698-960, 1710-2170 & 2300-2700
Tunable Bandwidth Full, no tuning required
Nominal Gain dBi 76.5 @ 698-960MHz / 4.5 @ 1710-2170MHz / 5.5 @ 2300-2700MHz
Radiator Material: Flexible PCB
Power W 10
Cable and Connector 10m 9006 Low Loss Cable Terminated with FME Female Connector & supplied with FME male to SMA male adpator.
Construction Black Radome, 200mm S/S mountingf tube
Radome Diameter mm 15.6
Packaging Retail Hand Sell
Vertical Beamwidth 25/30/20
Height mm 965mm
