RFI LPDA7038-11-10SMA 5G LTE 11dBi LPDA DIRECTIONAL ANTENNA 10M CABLE-SMA
Estimated delivery between December 23 and December 25.
RFI LPDA7038-11-10SMA 5G LTE 11dBi LPDA Directional Antenna (700-3800 MHz); 10m SMA(M)

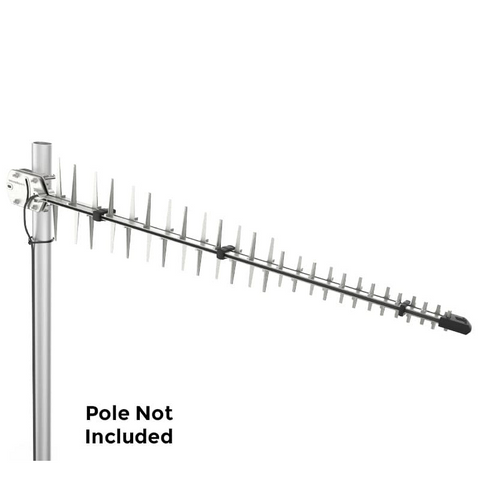

This wide-band log periodic antenna offers high gain directional coverage and is suited to all global cellular and various other wireless network applications. The unique ruggedized diecast aluminium construction ensures optimum performance and reliability in all weather and operating environments. The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement.
Mast mounting hardware is supplied to suite pole diameters of up to 60mm
Pole not included - available to order click here
Features LPDA7038-11-10SMA:
- Wide band frequency range
- Excellent front-to-back ratio
- Easy installation using supplied hardware
- 10Mtrs RG58 Cable with SMA male connector included
The LPDA7038 antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm.
Specifications:
| Cable And Connector | 10 meters cable terminated with male SMA connector |
| Frequency Range | 1710 - 2170 2300 - 2700 3400 - 3800 698 - 960 |
| Frequency | 698-960 / 1710-2700 / 3400-3800 MHz |
| Wind Load (Thrust) @ 160km/h N | 160 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 10.8 / 11 / 2.3 |
| Dimensions | 1112 x 200 x 47mm |
| Polarisation | Vertical |
| VSWR | <1.5:1 |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | 55 |
| Front Back ratio dB | 20 dB |
| Brand | RFI |
| Weight [kg] | 1.85 |
Documentation
LPDA7038-11-10SMA Technical Data Sheet
