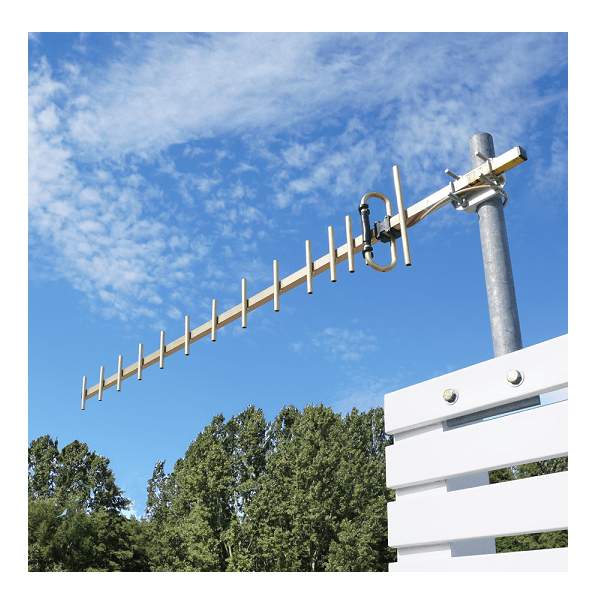

RFI YW15-6989 15 Element Yagi Antenna 698-890MHz
The YW15-6989 is a high gain yagi antenna which provides excellent point to point communications in RF control, short or long haul link, point to multipoint and other applications calling for highly directional antennas.
This model particularly suits cellular 700MHz 4G and 800MHz 3G applicationS.
This high gain antenna provides a solution where operation within the 700/800MHz frequency bands. The broad bandwidth also provides network design consistency and benefits to users operating in multiple frequency band segments.
The dipole element design delivers excellent performance across the entire bandwidth, with consistently low VSWR and less pattern distortion than dual dipole designs. The passive elements are mounted to the square boom section and welded on both sides to minimise the potential for corrosion or the generation of passive intermodulation (PIM).
The antenna rests at ground potential to provide excellent lightning protection and reduced precipitation static noise.
Applications include RF control, short or long haul links, control station combining and telemetry installations requiring a highly directional antenna in point-to-point and point-to-multipoint networks.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
• Wide band coverage from 698MHz to 890MHz
• All welded construction for reliability
• Excellent front-to-back ratio
• Alodined conductive plating for performance reliability
• Designed to minimize the generation of PIM
|Nominal Gain dBi||13.0 (15.1)|
|Frequency MHz||698 - 890|
|Nominal Impedance ?||50|
|Front/Back Ratio dB||20|
|External Construction||All welded aluminium with alodined finish|
|Termination||500mm of RG142 fitted with N type Female Connector|
|Lateral (Thrust) @ 160km/h N||108|
|Wind Gust Rating km/h||184|
|Torque @ 160km/h Nm||73|
