Cel-Fi ROAM R41 Mobile Signal Booster Kit
Estimated delivery between June 13 and June 15.
Minimum of
1
/
increment of
1
DESCRIPTION:

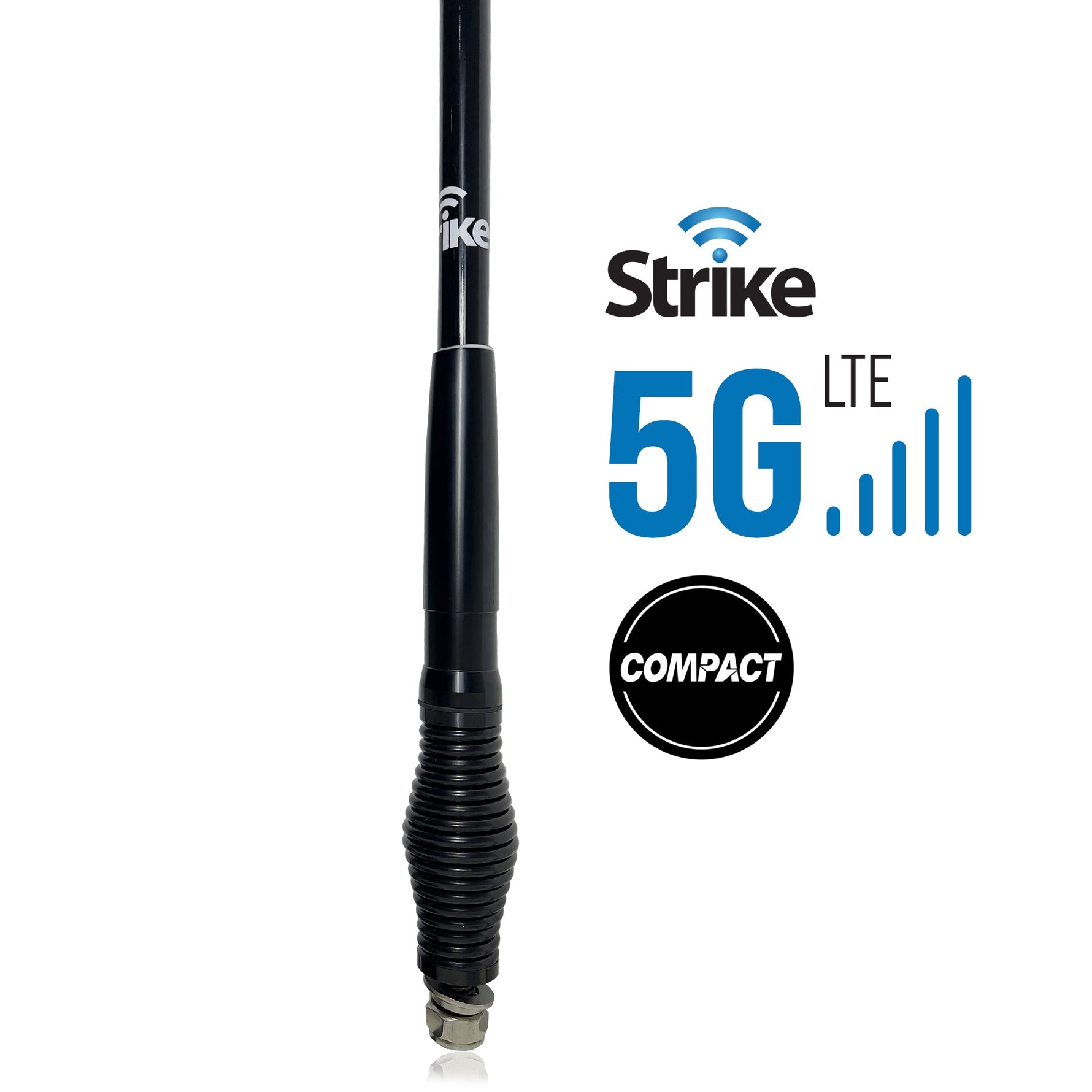

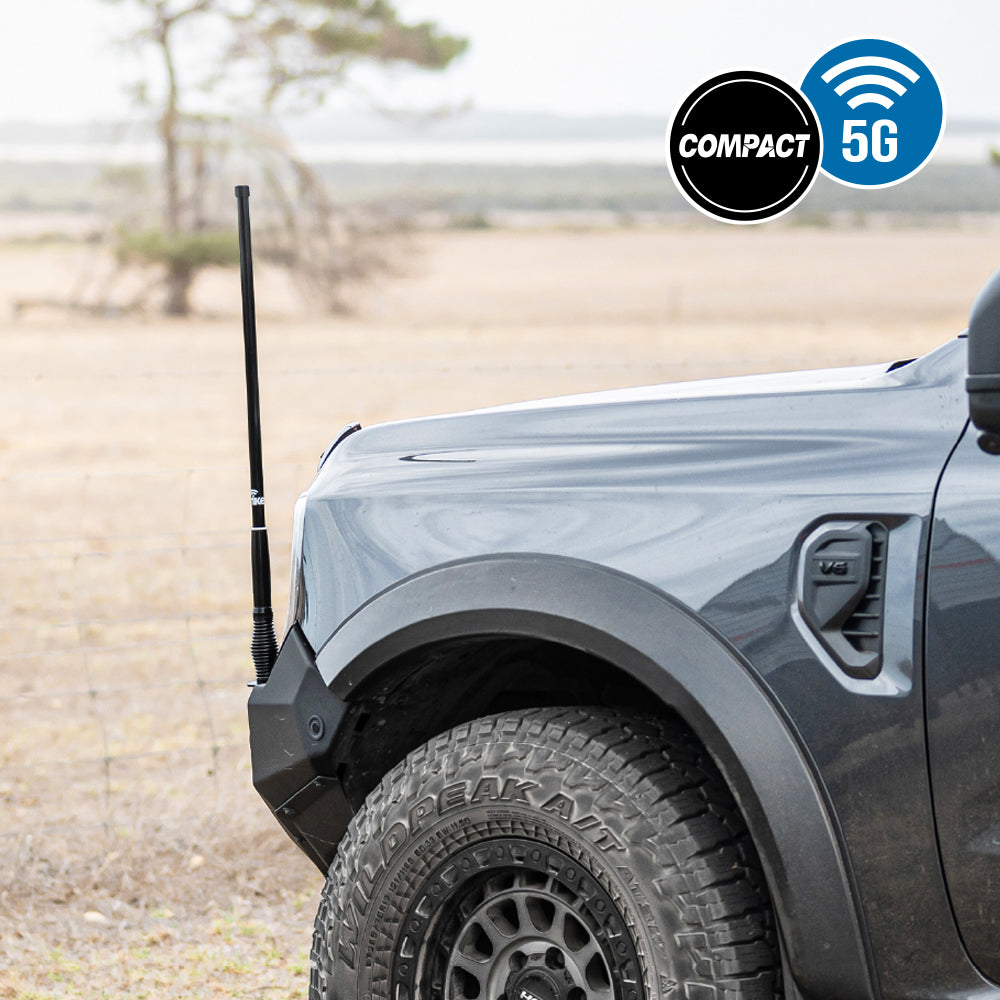

B3 7dBi Heavy Duty Bullbar Mount Antenna - Compact
- Total Height: 75cm
- Covers all Australian networks
- 7dBi Gain perfect for rural areas
- Removable whip
- Equipped with an SMA male connector
- Bullbar mount bracket included
- Deploy the unit anywhere in the network with full frequency coverage
- Latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelized coverage for specific mobile network operator signals
- Support for 3G 4G and 5G dynamic spectrum sharing (DSS)
- Ease of installation with plug-and-play operation
- With a 3-year warranty for your peace of mind
Bands | Downlink (MHz) | Uplink (MHz) | Max. Relay BW (MHz)
- 1 | 2110-2170 | 1920-1980 | 20
- 3 | 1805-1880 | 1710-1785 | 20
- 5 | 869-894 | 824-849 | 20
- 7 | 2620-2690 | 2500-2570 | 20
- 8 | 925-960 | 880-915 | 15
- 20 | 791-821 | 832-862 | 20
- 26 | 859-894 | 814-849 | 20
- 28L | 758-788 | 703-733 | 20
- Power Consumption (W) max. : 18
- Input Voltage (VDC max.) : 12
- Input Current (A max.) : 1.5
- Power Supply Plug : Automobile Auxiliary Power
- Power Supply Cable : 18 AWG
- Power Supply Cable Length (ft (m)) : 16.3 (5)
- Operating Temperature (°F (°C)) : 32 to 140 (0 to 60)
- Storage Temperature (°F (°C)) : -31 to 158 (-35 to 70)
- Heat Dissipation : Passive Convection
- Surface Temperature (°F (°C)) max. at ambient : 111.2 (44)
- Non-condensing Humidity : 0 to 95%
- Ingress Protection Rating : IPX0

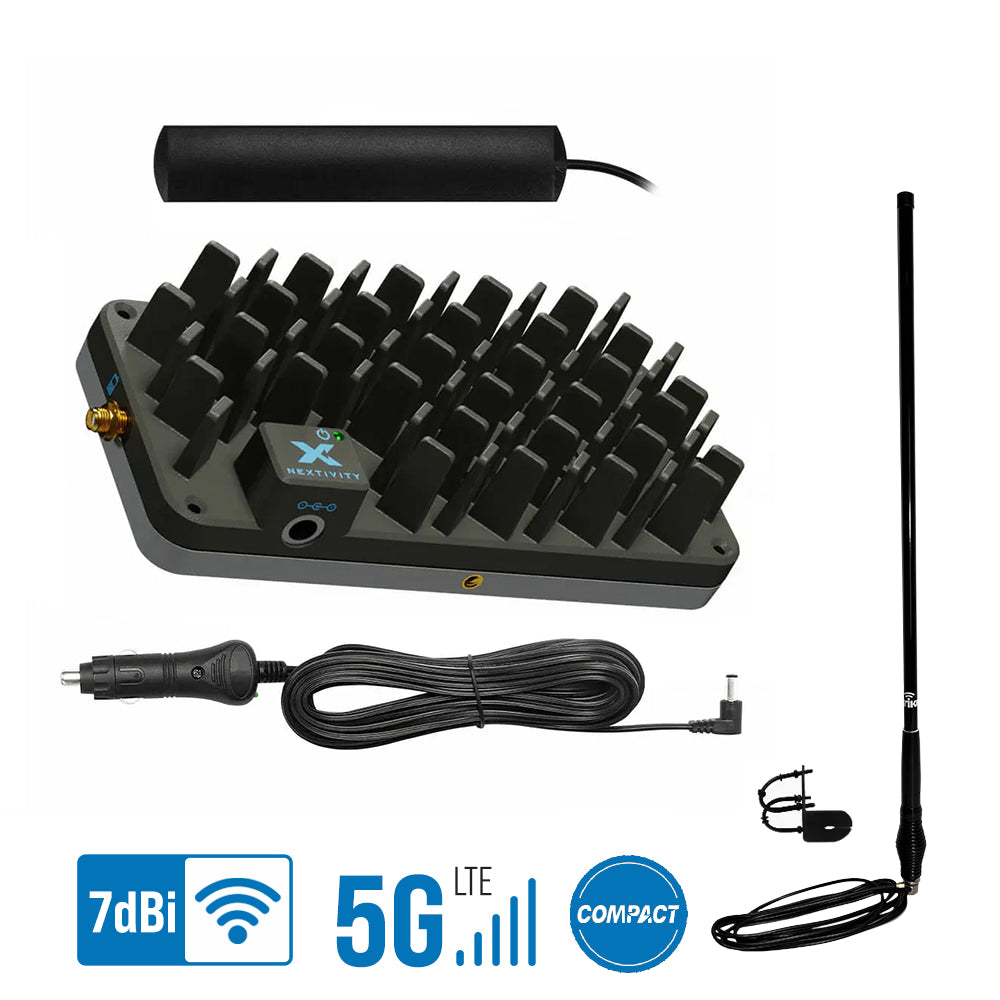

PACKAGE CONTENTS:

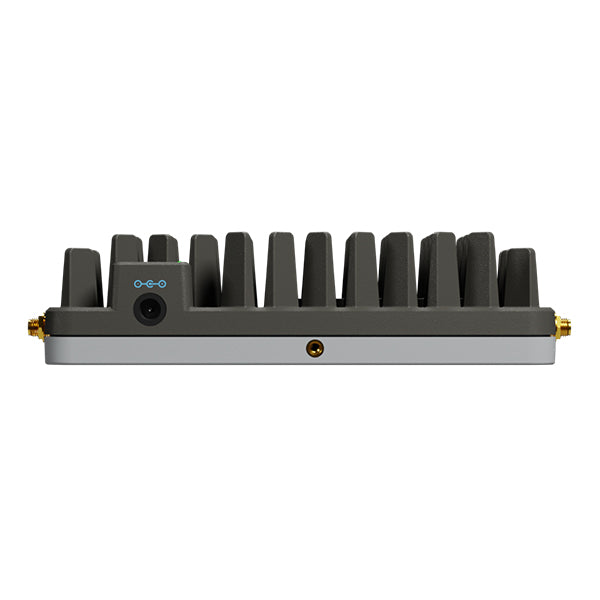

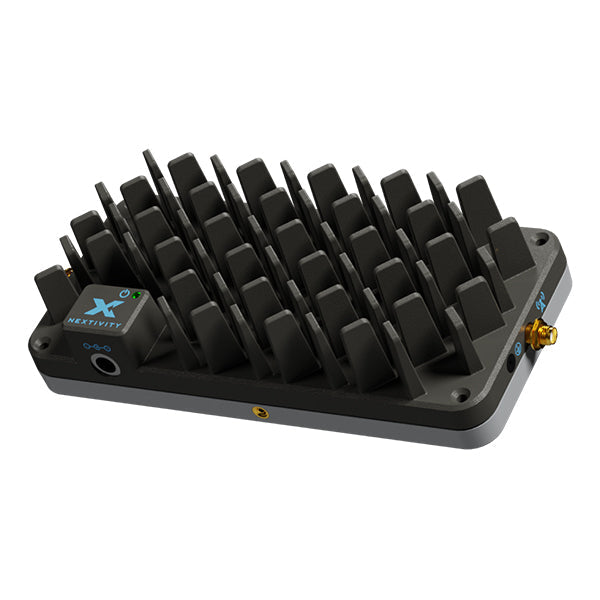

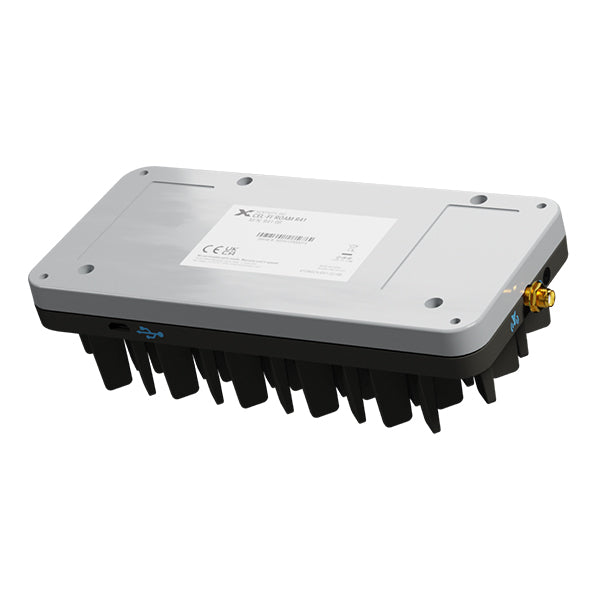

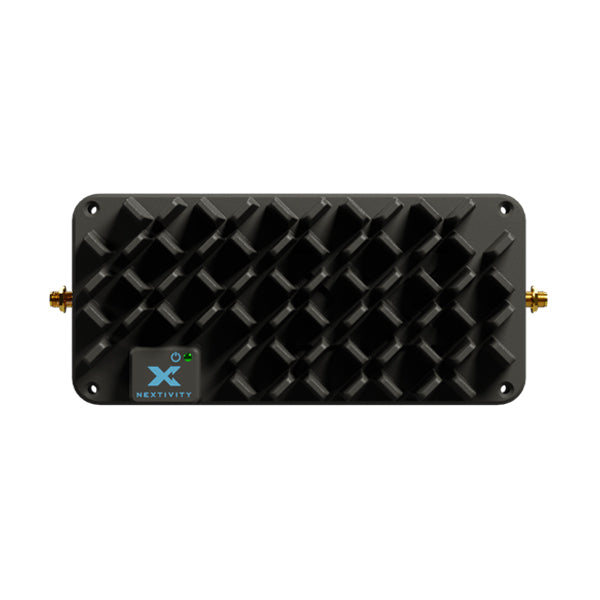

- 1 x CEL-FI ROAM R41 mobile unit
- 1 x CEL-FI ROAM R41 12VDC CLA power lead
- 1 x T5-4M-SMA Internal Server Antenna with 4M cable SMA male
Requires External Server Antenna (Optional Extra) - 1 x Strike B3 7dBi Heavy Duty Bullbar Mount Compact Antenna
