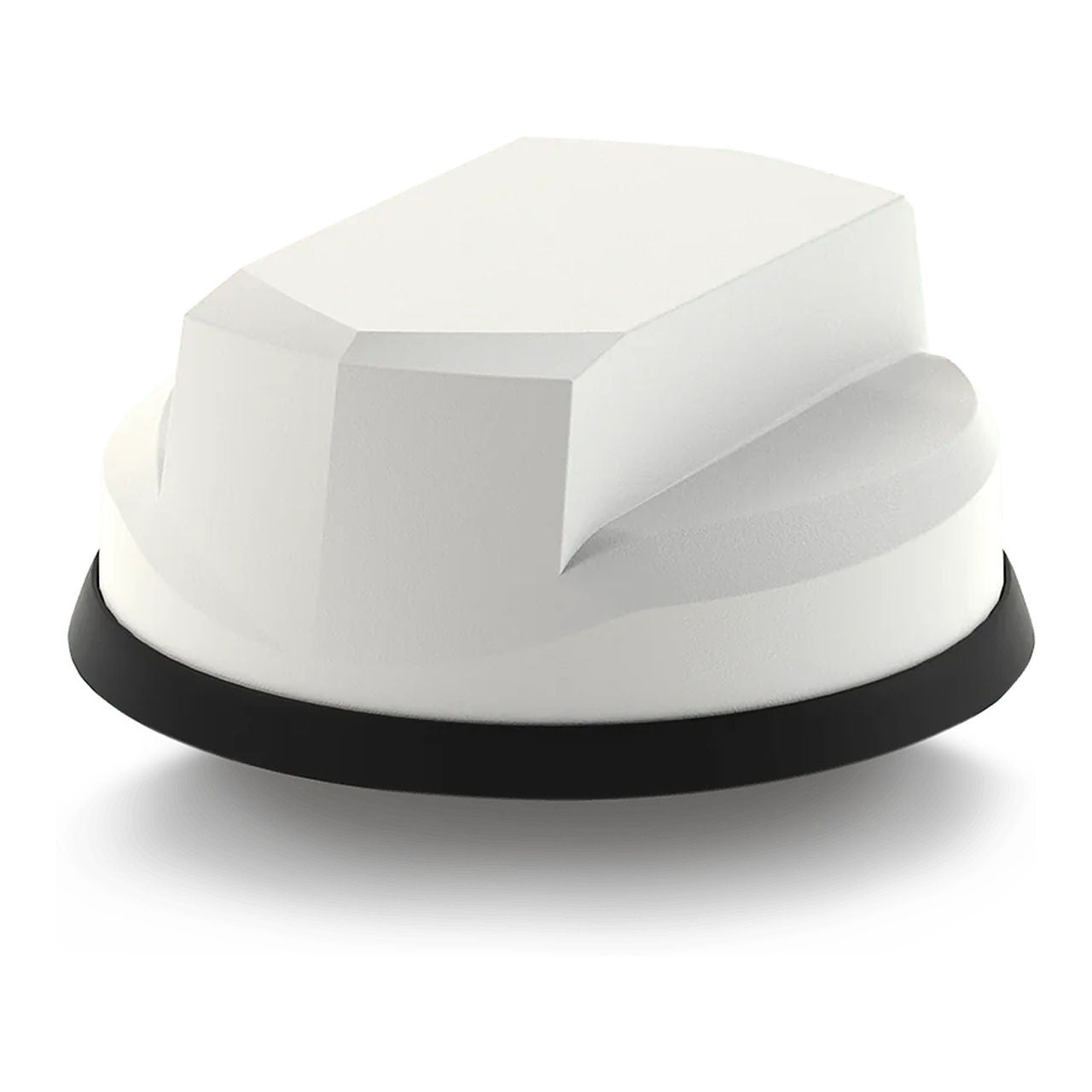

Panorama 4G-5G 2x2 MIMO Dome Antenna with GPS/GNSS White

Description::

This high-performance antenna offers multiple antenna functions for applications where a cost-effective efficient and robust antenna is essential. It is ideal for vending machines payment terminals and other M2M applications.The LGAM consists of a 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz a 4×4 MiMo function for 2.4/5GHz WiFi and an active GPS/GNSS element. The antenna maintains a high level of performance even when mounted on a non-metallic surface.  The Panorama Great White 2×2 MIMO 3G/4G/5G 4×4 WiFi GPS/GNSS Antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.FEATURES:Consists of up to 9 elements:Two isolated high-performance antenna elements covering 617-960/1710-6000 MHz offer MiMo/diversity at cellular/LTE frequencies.Up to 6 optional dual-band elements covering 2.4 & 7.2 GHz support MiMo/diversity operation for WiFi.An optional high-performance GPS/GNSS antenna with an integrated 26 dB gain LNA and high-quality filtering offers unparalleled positioning accuracy.Does not require a metallic ground plane.Maintains a high level of performance even when mounted on non-metallic surfaces. Read more

Specification:

Panorama Antennas presents the Panorama Great White antenna with 2x2 MIMO 3G/4G/5G 4x4 WiFi and GPS/GNSS capabilities. Get top-notch connectivity in white design.
