Panorama 4G-5G GNSS Wall or Desk Mount 4x4 MIMO Antenna 5m SMA Male

Description::

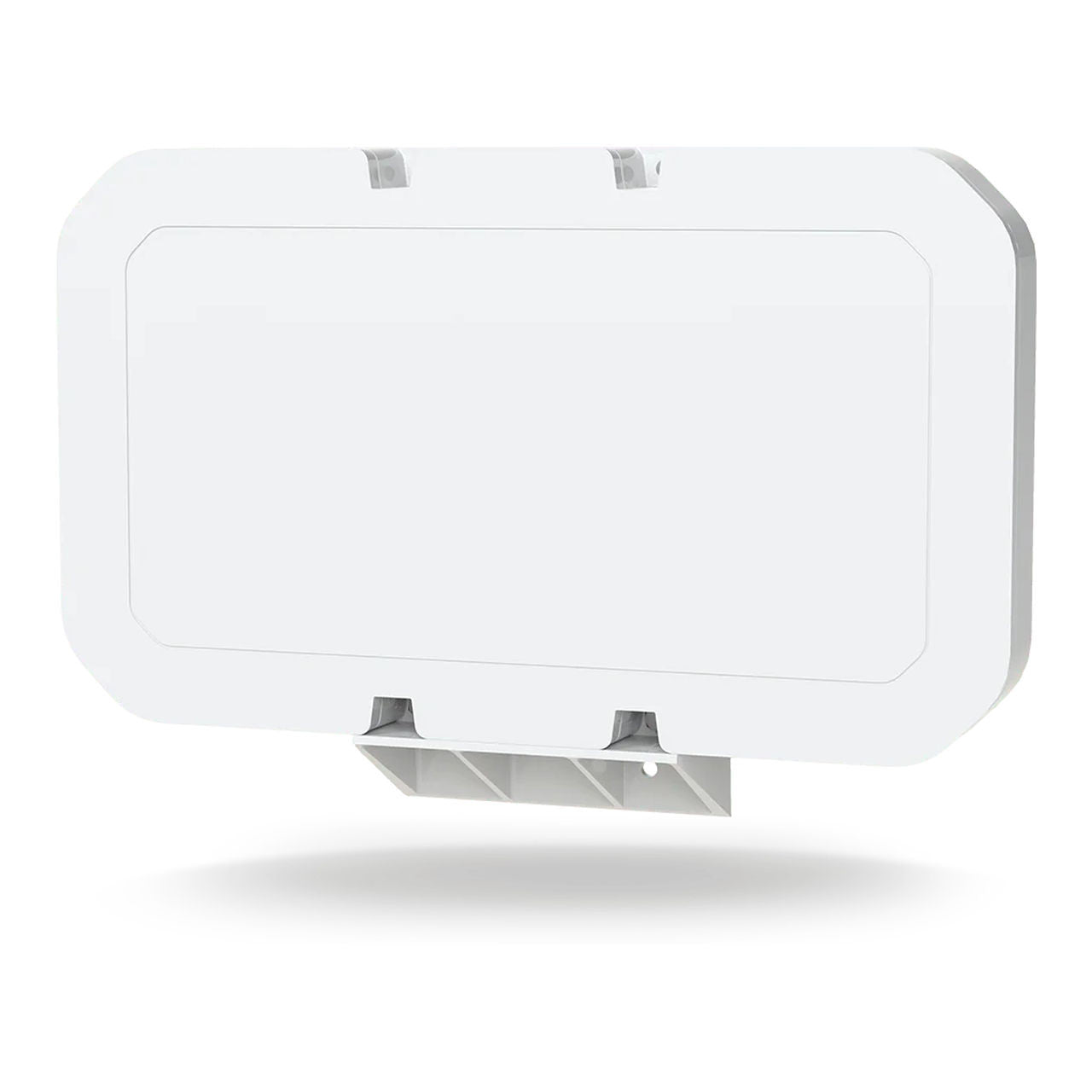

The DWMM4[G]-6-60 Antenna offers a 4×4 MiMo solution for global 4G/5G networks covering frequencies from 617-6000MHz.Featuring four separately fed ultra-wideband elements in a single housing the DWMM4[G] is ideal for a wide range of fixed site and failover applications. It comes with a mounting bracket for easy wall installation using the supplied screws and wall plugs or mast mounting with the provided clamps.The antenna can also be directly mounted to non-conductive panels or internal walls using screws or placed on a desk with the included mounting feet. Its omnidirectional radiation pattern allows for flexible placement without the need for directional alignment. The DWMM4G variant includes an integrated GPS/GNSS module with 26dB LNA gain and advanced noise filtering.Equipped with an integrated flame-retardant CS32 cable (FR CS29 for GPS/GNSS) the antenna minimises exposed connector joints and simplifies cable management for effortless installation.FEATURES4×4 MiMo Omnidirectional AntennaMultiple Mounting Options4G/5G LTE ReadyCovers Wideband 600-6000MHzOptional GPS/GNSSIP66 rated Read more

Specification:

Discover the Panorama DWMM4G-6-60 4x4 MiMo 4G/5G Antenna. Covering 617-6000MHz it ensures reliable connectivity for fixed site and failover applications featuring omnidirectional coverage and easy installation.
