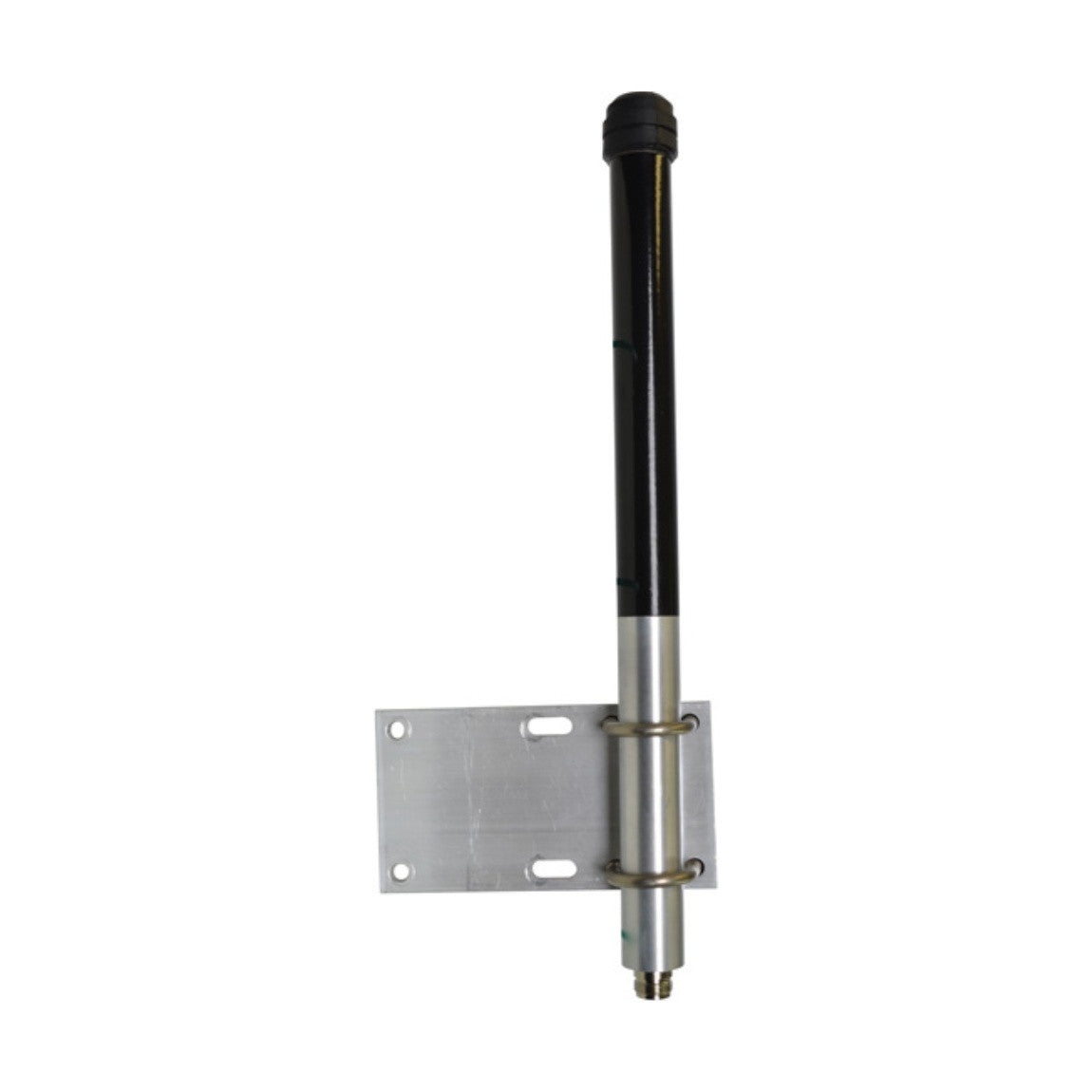

Mobile Mark Industrial 2.4 GHz Omnidirectional Antenna 3 dBi High Vibration

Description::

The Mobile Mark OD3-2400MOD2 antenna is designed to perform in the most demanding conditions. This omnidirectional antenna operates in the 2.4-2.5 GHz frequency range and offers 3 dBi gain making it perfect for environments such as mining oil fields and construction sites where high vibration is a constant challenge.Key Features:2.4-2.5 GHz frequency range3 dBi gain Designed for high-vibration environments Fibreglass radome with irridited aluminiumConformal foam dampening to reduce vibration impactRated for continuous operation up to 100 watts2:1 max VSWRN female connectorIPx5 water ingress protectionDurable Construction for Extreme ConditionsBuilt to withstand tough environments the OD3-2400MOD2 features a black fibreglass radome with precision-machined aluminium components that are irridited for enhanced weather protection. Its rugged construction ensures long-lasting performance even in extreme temperatures ranging from -40 °C to +85 °C.Wide Area Network CoverageThis antenna delivers uniform omnidirectional coverage ensuring reliable communication for wide-area networks. It utilises a unique phasing technique that cancels out-of-phase current distribution improving overall performance and providing consistent signal strength across its operating range.High Power and Wind ResistanceWith a continuous power handling capacity of 100 watts and a rated wind velocity of 200 kph the OD3-2400MOD2 is engineered to perform under severe weather conditions. Whether in stationary or mobile deployments this antenna can maintain strong connectivity.Easy Installation and Mounting OptionsThe OD3-2400MOD2 comes equipped with a mast mounting kit allowing for easy installation on poles or heavy-duty equipment. It supports mast diameters of up to 64 mm and an optional wall mount bracket (OD-WMK) is available for added installation flexibility.IPx5 Water Ingress ProtectionDesigned to meet IPx5 water ingress standards this antenna is protected against water jets making it suitable for outdoor installations in harsh weather conditions. It’s a reliable choice for applications exposed to rain dust and other challenging elements.Optimised for Fixed Wireless SolutionsIdeal for fixed wireless applications the OD3-2400MOD2 is compatible with a wide range of Wi-Fi networks. It terminates with an N-type female connector ensuring secure connections for industrial commercial and remote installations. Read more

Specification:

The Mobile Mark OD3-2400MOD2 is a 2.4 GHz omnidirectional antenna with 3 dBi gain designed for high-vibration environments like mining and construction.
