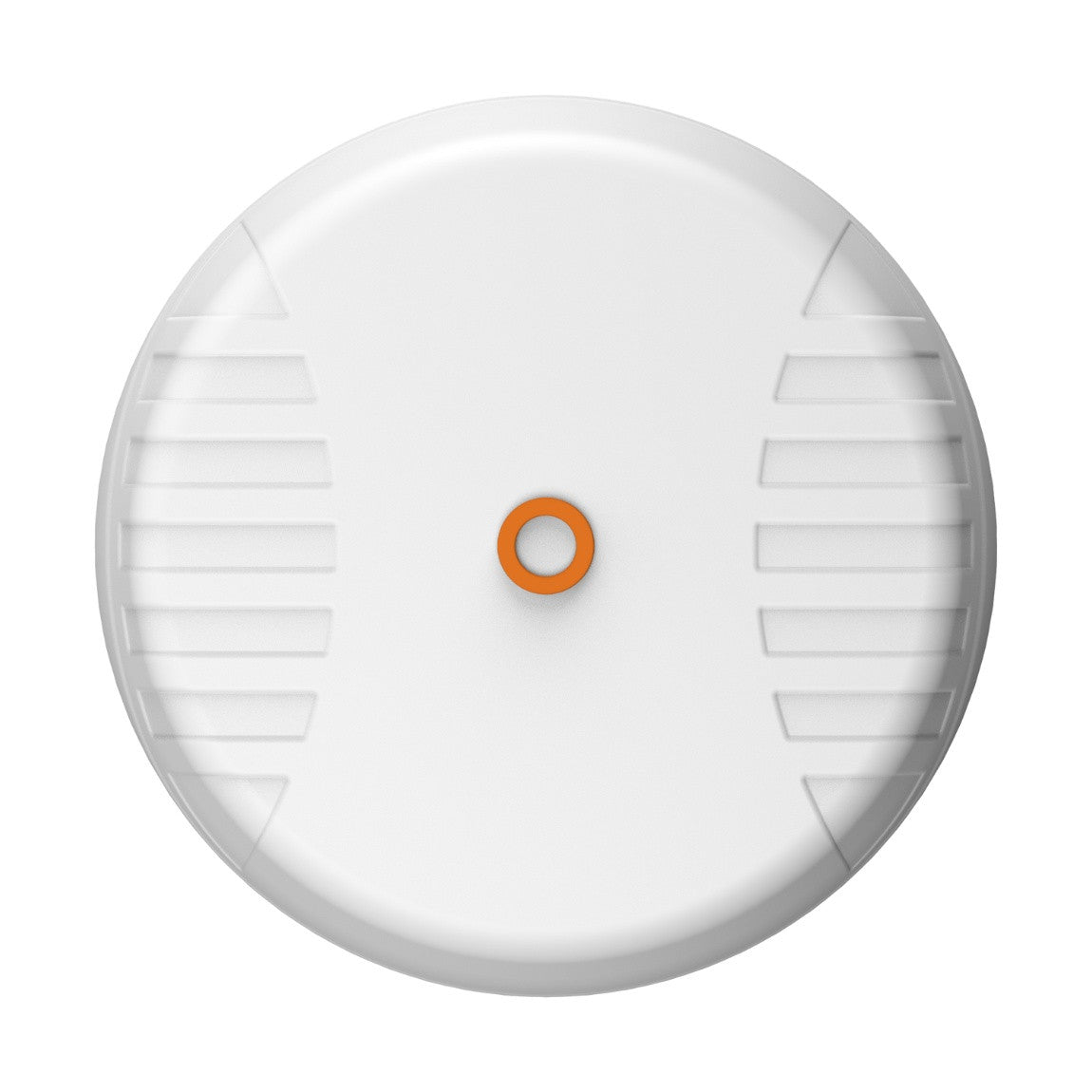

Poynting SWIRL-4 4G-5G Omni 4x4 MIMO Antenna 617 to 6000 MHz 4x4 WiFi GNSS

Description::

The Poynting SWIRL-4 is an omnidirectional antenna designed to provide exceptional connectivity for both marine and mobility applications. Operating across a wide frequency range of 617 MHz to 6000 MHz this antenna supports 4x4 MIMO for both 4G/5G cellular and dual-band Wi-Fi making it an ideal choice for high-performance communication in demanding environments.Key Features:Wide Frequency RangeMIMO TechnologyDual-Band Wi-Fi SupportGNSS FunctionalityHigh Gain PerformanceDurable and WeatherproofSaltwater ProtectionCPE Transformation CapabilityMulti-Band Cellular and Wi-Fi PerformanceThe SWIRL-4 covers multiple frequency bands ensuring seamless connectivity across 5G/LTE and Wi-Fi. With 4x4 MIMO cellular antennas and 4x4 MIMO Wi-Fi the antenna delivers fast reliable data speeds and high throughput in a variety of network conditions. The dual-band Wi-Fi operates at 2.4 GHz and 5.0 to 7.2 GHz further enhancing its versatility.Rugged and Durable DesignBuilt to withstand harsh marine conditions the SWIRL-4 boasts an IP69K weatherproof rating UV-stable radome and saltwater protection. It is also tested to MIL-STD 810G standards for salt spray and IK08 impact resistance ensuring durability in both maritime and onshore environments. The antenna is designed to operate in extreme temperatures ranging from -40 °C to +80 °C.GNSS Capability for Accurate NavigationIn addition to its cellular and Wi-Fi capabilities the SWIRL-4 integrates a dual-band GNSS antenna supporting both L1 and L5 bands providing accurate positioning for navigation and location-based services. This makes it particularly suitable for marine vessels and mobile platforms that require reliable GPS data.High Gain and Optimised Signal TransmissionThe SWIRL-4 antenna offers a peak gain of 6 dBi ensuring enhanced signal strength across its supported frequency ranges. The antenna is designed for optimal signal transmission with a VSWR of ≤2.5:1 ensuring that the majority of the signal is transmitted efficiently improving overall performance and data reliability.Versatile Mounting and Compact DesignWith a compact size of 382 mm in diameter and 127 mm in height the SWIRL-4 is easy to mount on a wide range of surfaces. Its robust build and surface mount design ensure secure installation in both fixed and mobile environments. The antenna also offers a convenient coaxial cable length of 650 mm facilitating flexible installation options.Compliance and CertificationThe SWIRL-4 complies with international safety and environmental standards including CE RoHS 2011/65/EU and ISO 9001:2015. This ensures that the antenna meets stringent regulatory requirements making it a reliable and compliant choice for global applications. Read more

Specification:

The Poynting SWIRL-4 omni-directional antenna offers 4x4 MIMO for 4G/5G dual-band Wi-Fi GNSS and IP69K durability for marine and mobility applications.
