Panorama Multi-Band Cellular Antenna 3m SMA Male
Estimated delivery between December 29 and December 31.
Minimum of
1
/
increment of
1

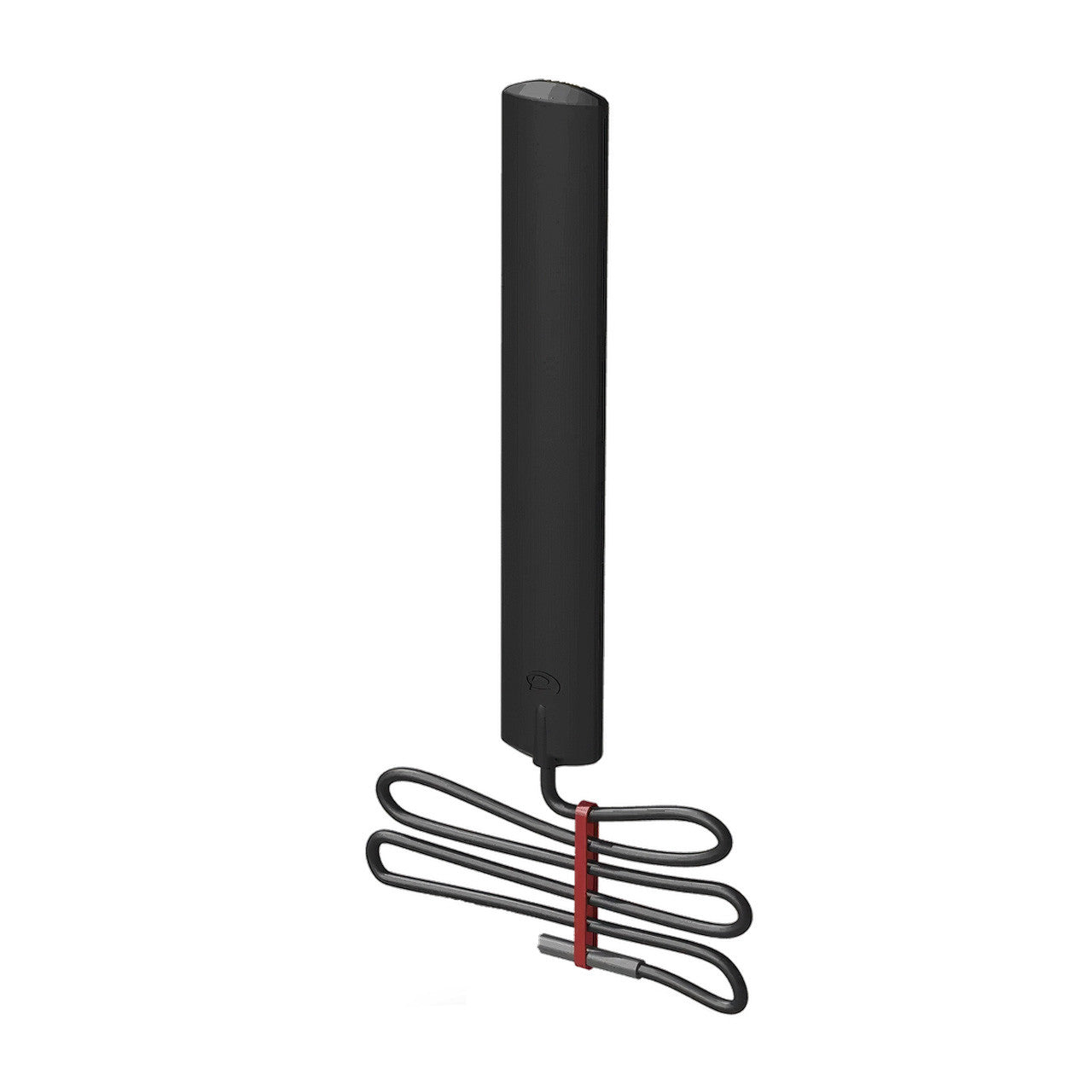

Panorama EF-BC3G-26 Adhesive Mount Antenna: Boost cellular connectivity in vehicles smart metering and M2M applications with easy installation multi-band coverage and long-lasting reliability.
Description::
2G/3G/4G Easy-Fit Antenna. The Panorama EF-BC3G-26 antenna is designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.
Key Features:
- Compact design for easy installation
- Can be mounted on any non-conductive surface
- Suitable for use in a vehicle or static device
- Covers all 2G/3G/4G LTE bands
- Omni-directional and can be installed with or without a ground plane
- Slimline design
Benefits:
- A plug-an-play solution with no additional tuning
- Versatile product for multiple applications
- Improved your cellular connectivity
Applications:
- In-vehicle connectivity
- Smart metering
- Vending machines
- M2M applications
Specification:
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 698 – 960MHz | 2dBi; 1710 – 2170MHz | 3dBi; 2400 – 2700MHz | 6dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 131 (mm) | 5.16 (in) |
| Width | 21.7 (mm) | 0.85 (in) |
| Diameter | 2.5 (mm) | 0.10 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.5 (m) | 1.64 (ft); max: 3 (m) | 9.84 (ft) |
| Cable Type (LTE) | RG174 |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m); FAKRA D; TS9 (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Glass Mount |
| Mounting Methods | Glass Mount |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; FirstNet |
