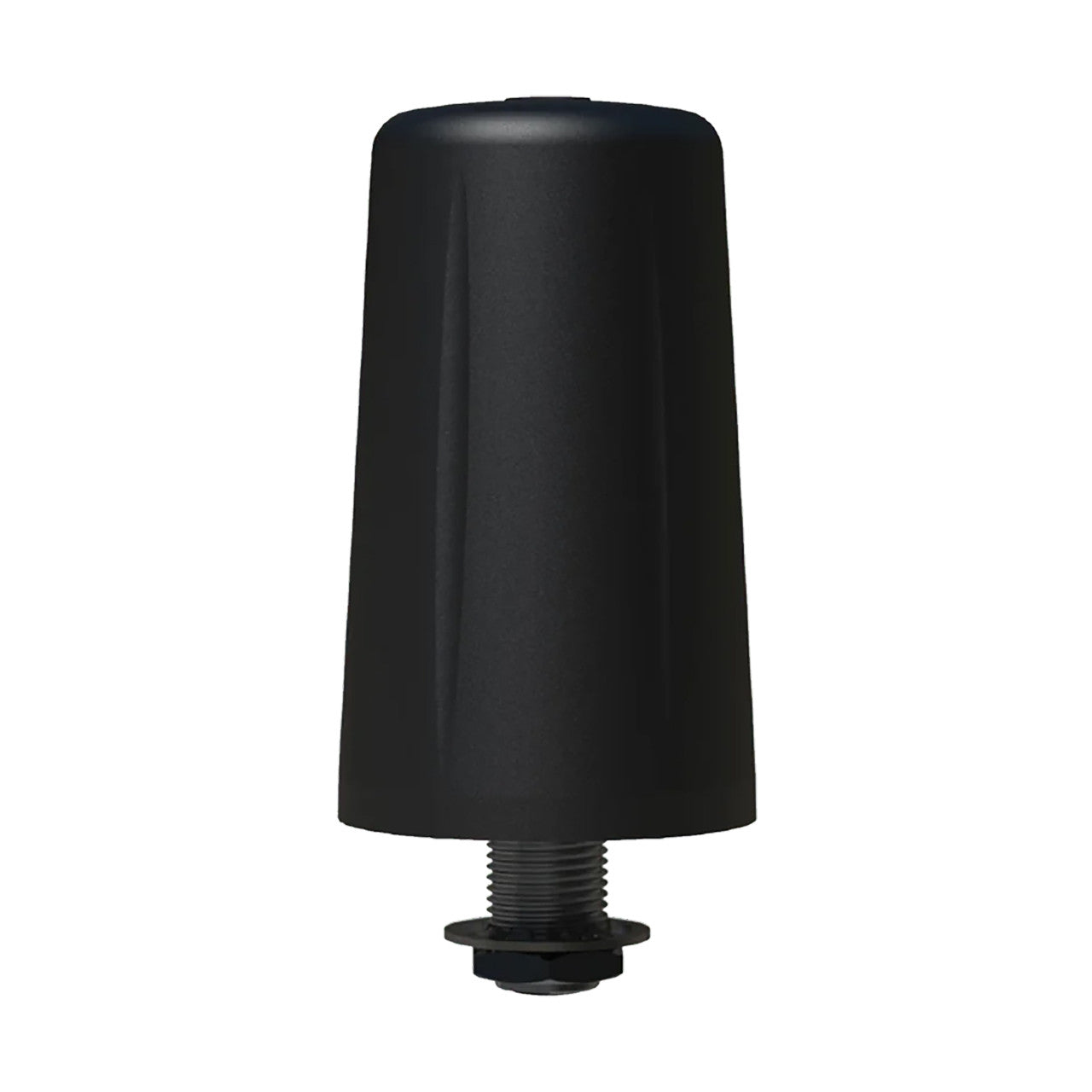

Panorama LPB-6-60 Low Profile 4G-5G Antenna 617 to 6000 MHz 1m SMA Male
Estimated delivery between December 18 and December 20.
Description::
The Panorama LPB-6-60 3G-5G Low Profile Cost Effective Antenna is a high performance omnidirectional antenna that is ideal for use in a variety of outdoor applications. The antenna features a low profile design that makes it discreet and easy to install and it is also weatherproof and resistant to corrosion. The antenna is available with a SMA male connector and a 1m cable.
Key Features:
- Low profile wideband antenna
- Cost effective solution
- Robust product with integrated cable of various lengths
- Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz
- Medium dB gain antenna
- IP66 rated for outdoor use
Benefits:
- Allows for SiSo LTE connectivity in a small antenna profile and footprint
- Suitable for use across multiple applications and industries
- High Performance antenna
Applications:
- Utility sector
- Smart metering
- Vending machine & Kiosk
Specification:
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 30 |
| Frequency Range | Gain | 617 – 960MHz | 3dBi; 1710 – 2700MHz | 4dBi; 3400 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 82 (mm) | 3.23 (in) |
| Diameter | 48 (mm) | 1.89 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 2 (m) | 6.56 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | CS29 |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Panel; Wall |
| Mounting Methods | Mast; Panel; Wall |
| APPROVALS DATA | |
| IP Rating | IP66 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready |
