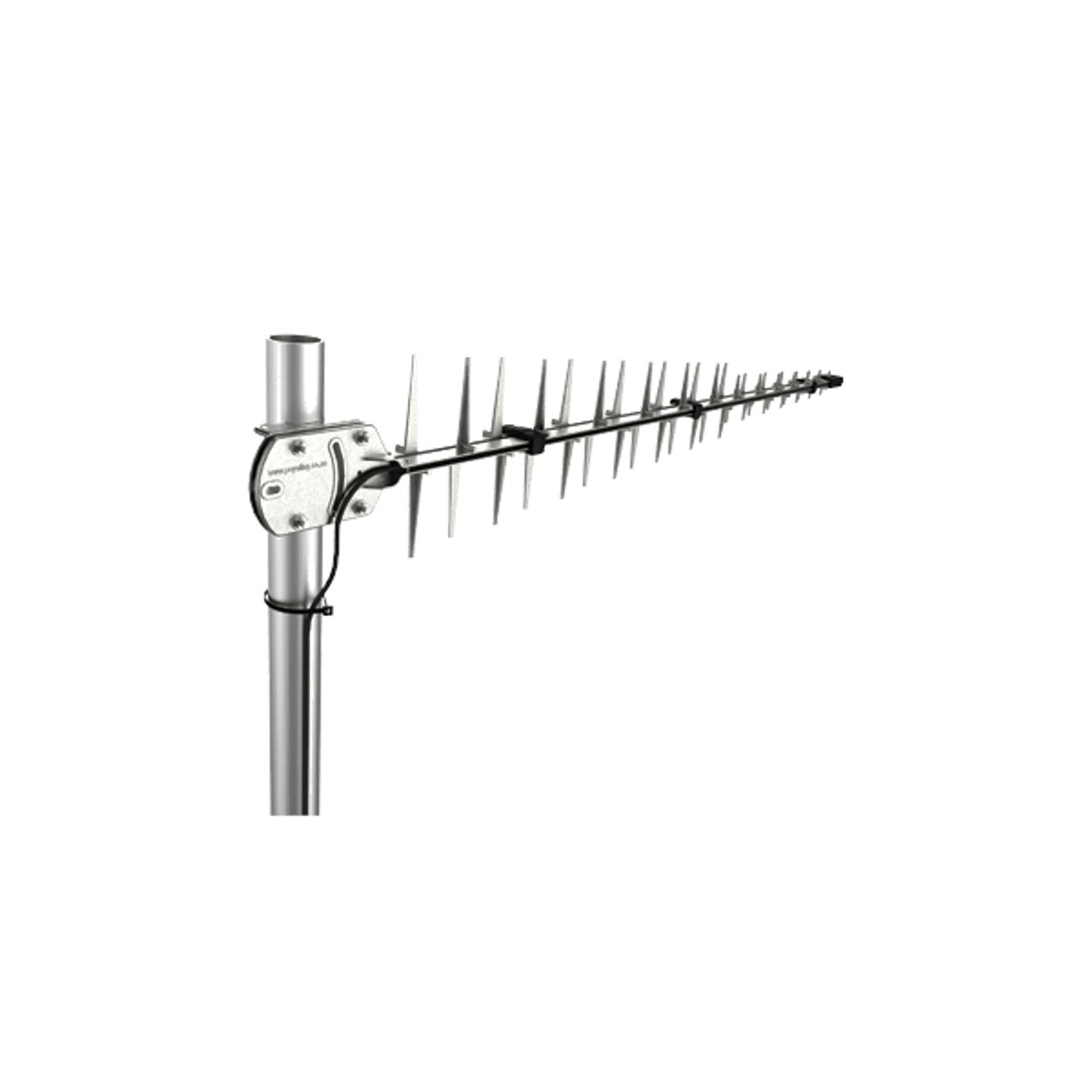

Poynting LPDA-92 Wideband antenna 698 to 3800 MHz 7 m SMA Male
Estimated delivery between December 29 and December 31.
Description::
The Poynting LPDA-92 Antenna is a durable and high performance directional 4G antenna capable of operating on most global 4G frequencies from 700 to 3800 MHz. The antenna provides a modest 11 dBi gain across standard 4G frequencies between the range of 700 and 2700 MHz making it suitable for use in hilly terrain or locations obstructed by vegetation.
The LPDA-92 antenna can also operate on 5G Mid-Band frequencies although only at a low gain (2.3 dBi).
Features:
- Futureproof wideband LTE and Wi-Fi antenna covering 690 – 3800MHz
- Compatible with 3G 4G and 5G technologies
- 5G Ready; includes 3.2 GHz to 3.8 GHz CBRS Band
- Water and dust resistant
- Easy alignment with the main beam around 50° wide
- Used in extreme weather environments
- Comes with a bracket U-bolts and fasteners suitable for pole mounting
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Farming & Agricultural Antennas Urban & Rural Cellular Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz |
| Frequency Range | 698-3800 MHz |
| Gain | 11dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n48 n51 n53 n65 n66 n67 n74 n75 n76 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Uni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B74 B85 B103 B106 |
| Mounting Type | Pole Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | N-Type SMA |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP65 |
| Enclosure Name | LPDA |
| Enclosure Size | Large |
| LTE Ports | 1 |
| LPDA-92 | |
|---|---|
| Category | Details |
| Electrical Specifications | |
| Frequency Bands | 698 – 960 MHz 1427 – 1517 MHz 1710 – 2700 MHz 3400 – 3800 MHz |
| Gain (Max) | 10.8 dBi @ 698 – 960 MHz 10 dBi @ 1427 – 1517 MHz 11 dBi @ 1710 – 2700 MHz 2.3 dBi @ 3400 – 3800 MHz |
| VSWR | <1.5:1 across 95% of the bands |
| Feed Power Handling | 10 W |
| Input Impedance | 50 Ohm (nominal) |
| Polarisation | Directional Linear |
| Coax Cable Loss | 0.385 dB/m @ 900 MHz 0.507 dB/m @ 1500 MHz 0.565 dB/m @ 1800 MHz 0.666 dB/m @ 2400 MHz 0.788 dB/m @ 3000 MHz |
| DC Short | Yes |
| Product Box Contents | |
| Antenna | A-LPDA-0092 |
| Mounting Bracket | Econo brackets U-bolts and fasteners suitable for pole mounting |
| Mechanical Specifications | |
| Plastics Material | Nylon 6 |
| Plastics Colour | Black |
| Frame Material | Passivated ADC12 |
| Frame Colour | Aluminium grey |
| Mounting Type | Pole Mount |
| Environmental Specifications Certification & Approvals | |
| Wind Survival | ≤160 km/h |
| Temperature Range (Operating) | -40°C to +80°C |
| Environmental Conditions | Outdoor/Indoor |
| Water Ingress Protection Ratio/Standard | IP 65 |
| Salt Spray | MIL-STD 810G/ASTM B117 |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non-condensing |
| Storage Temperature | -40°C to +80°C |
| Enclosure Flammability Rating | UL 94-HB |
| Impact Resistance | IK 08 |
| Product Safety & Environmental | Complies with CE and RoHS standards |
