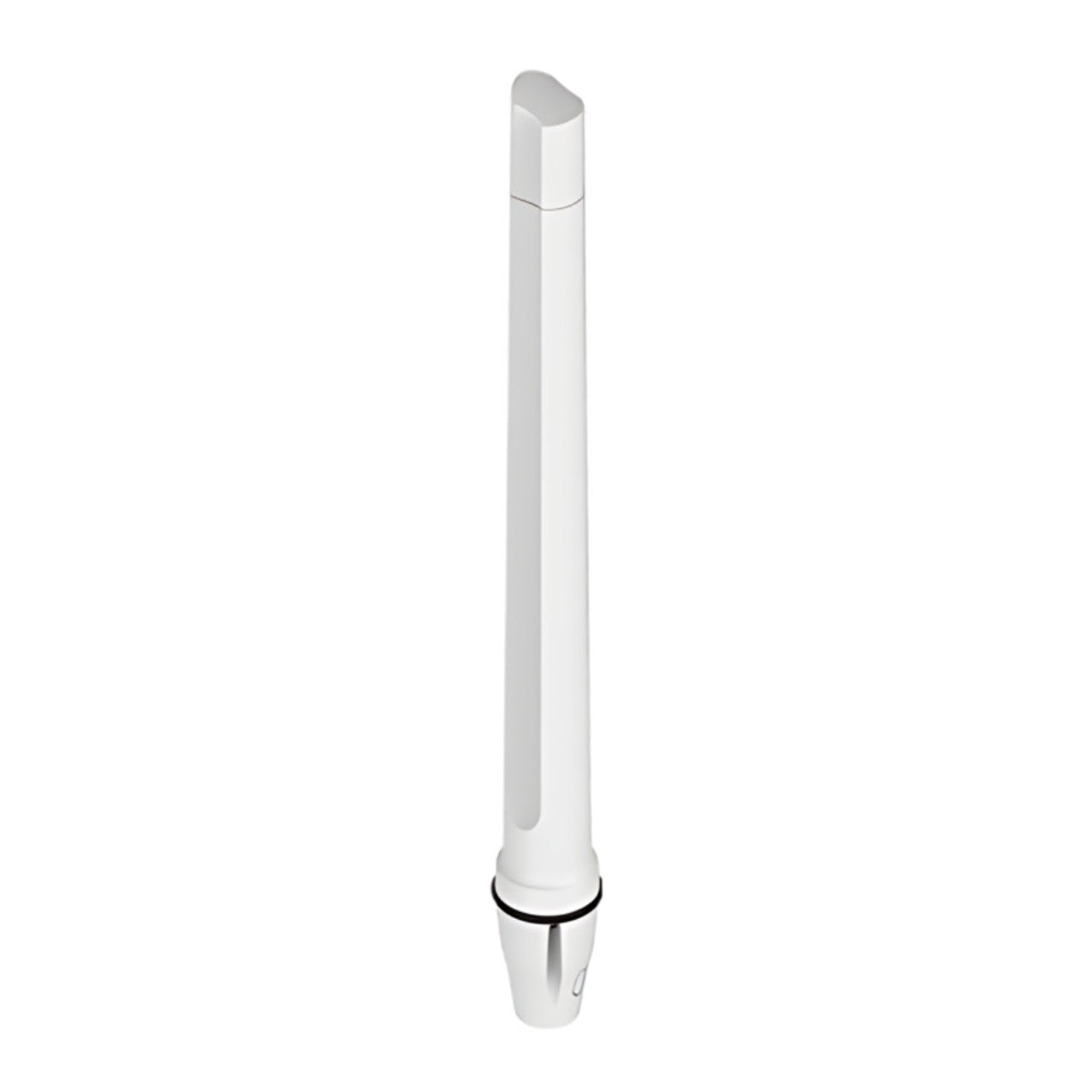

Poynting OMNI-402 Omni-Directional Marine 2x2 MIMO 4G antenna; 410 to 3800 MHz
72696
72895
$728.95$726.96
Unit price/ per
Estimated delivery between December 29 and December 31.
Minimum of
1
/
increment of
1
The Poynting OMNI-402 offers ultra-wide frequency coverage 2X2 MIMO high 6.2 dBi gain and an IP68 marine-grade design for reliable 4G/5G connectivity.
Description::
The Poynting OMNI-402 Omnidirectional Marine 2×2 MIMO 4G antenna operates across an ultra-wide frequency range from 410 MHz to 3800 MHz covering all LTE and 5G bands. It supports applications in various bands including 410-470 MHz 617-960 MHz and 3400-3800 MHz ensuring seamless global connectivity.
Key Features:
410 MHz to 3800 MHz Frequency Coverage
2×2 MIMO Capability
High Gain with peak values up to 6.2 dBi
IP68 rating
Comes with a 1-inch marine adapter bracket
Future-proof design supports global LTE bands
2×2 MIMO Capability
Equipped with 2×2 MIMO functionality the OMNI-402 ensures improved signal performance and enhanced data throughput. The antenna's dual-radiating elements are designed to optimise communication for both marine and land-based installations.
High Gain and Reliable Performance
This omnidirectional antenna delivers a peak gain of 6.2 dBi providing exceptional signal reception particularly in challenging environments. The antenna’s high gain across various frequency bands ensures stable and reliable communication.
Marine-Grade Design
Built specifically for marine environments the OMNI-402 is IP68-rated for water and dust resistance and it is UV and saltwater protected. The antenna’s rugged design ensures dependable performance even in harsh weather conditions making it ideal for yachts boats and coastal installations.
Easy Installation
The OMNI-402 comes with a standard 1-inch (14 TPI) marine mount ensuring quick and easy installation on marine vessels. It also includes a pole-mount bracket for land-based applications offering flexible mounting options to suit different needs.
Future-Proof Technology
Designed to be future-proof the OMNI-402 covers the 450 MHz LTE frequency band which is gaining popularity in several regions. Additionally it supports the 3400-3800 MHz range ensuring compatibility with emerging 5G networks and applications.
Compliance and Environmental Standards
The OMNI-402 complies with RoHS 2011/65/EU and ISO 9001:2015 standards ensuring adherence to strict safety and environmental guidelines. Its IP68 rating further guarantees protection in extreme weather conditions making it a reliable choice for both marine and inland use.
