Poynting HELI-6 Directional Circular-Polarised Tunnel 4G/LoRa antenna; 698 to 960 MHz
Estimated delivery between December 29 and December 31.
Description::

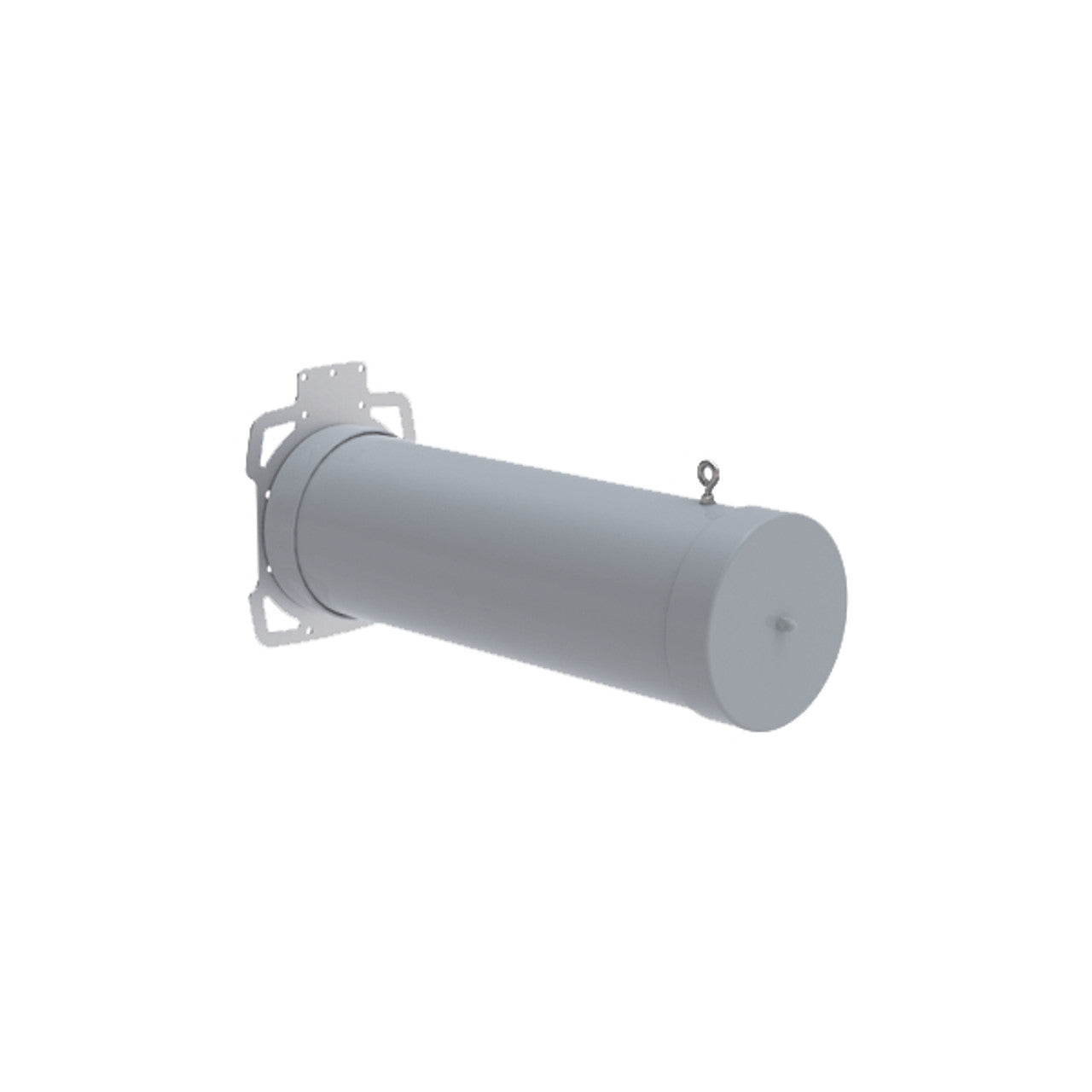

The HELI-6 is a high gain LTE directional mine and tunnel antenna. Poynting has fifteen years of experience in designing and manufacturing antennas for underground mining communication and data networks. The hardy construction of the antenna makes it ideal for a mining environment but it is also suitable for oil/gas chemical environments and even fiery mines. In tests the data rate and range achieved with this antenna were substantially greater than linear polarized panel antennas of the same gain. The HELI-6 operates from 698–960MHz.
- Cable sold separately. N-type (f)
- Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
- Covers traditional ISM bands for 868/915 MHz LoRa and other technologies
- Uni-directional – radiates in one direction in a tunnel
- Ruggedized & water ingress protected (IP 65)
- Ideal for Mining & Tunnel M2M and IoT deployments
We are taking expressions of interest for this antenna. Please call our office on 07 5577 0500 if you have an application that this antenna would be suitable for and we will be in touch.
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Mining & Tunnelling Antennas |
| Technology | Cellular (LTE/2G/3G/4G) LoRa |
| Frequency Range | 698 – 960 MHz |
| Frequency Band | 698-803MHz 791-894MHz 868-915MHz 880-960MHz |
| 5G Bands | n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n81 n82 n83 n85 n89 n100 n106 |
| LTE/4G Bands | B5 B8 B12 B13 B14 B17 B18 B19 B20 B26 B27 B28 B29 B44 B67 B68 B85 B103 B106 |
| Gain | 13.5dBic |
| Directionality | Uni-Directional |
| Mounting Type | Pole Mount Ceiling Mount |
| Connectors | N-Type |
| MIMO | SISO |
| Polarisation | Circular Polarised |
| Environmental | IP65 |
| Enclosure Name | MinePoynt |
| Enclosure Size | Medium |
| LTE Ports | 1 |
