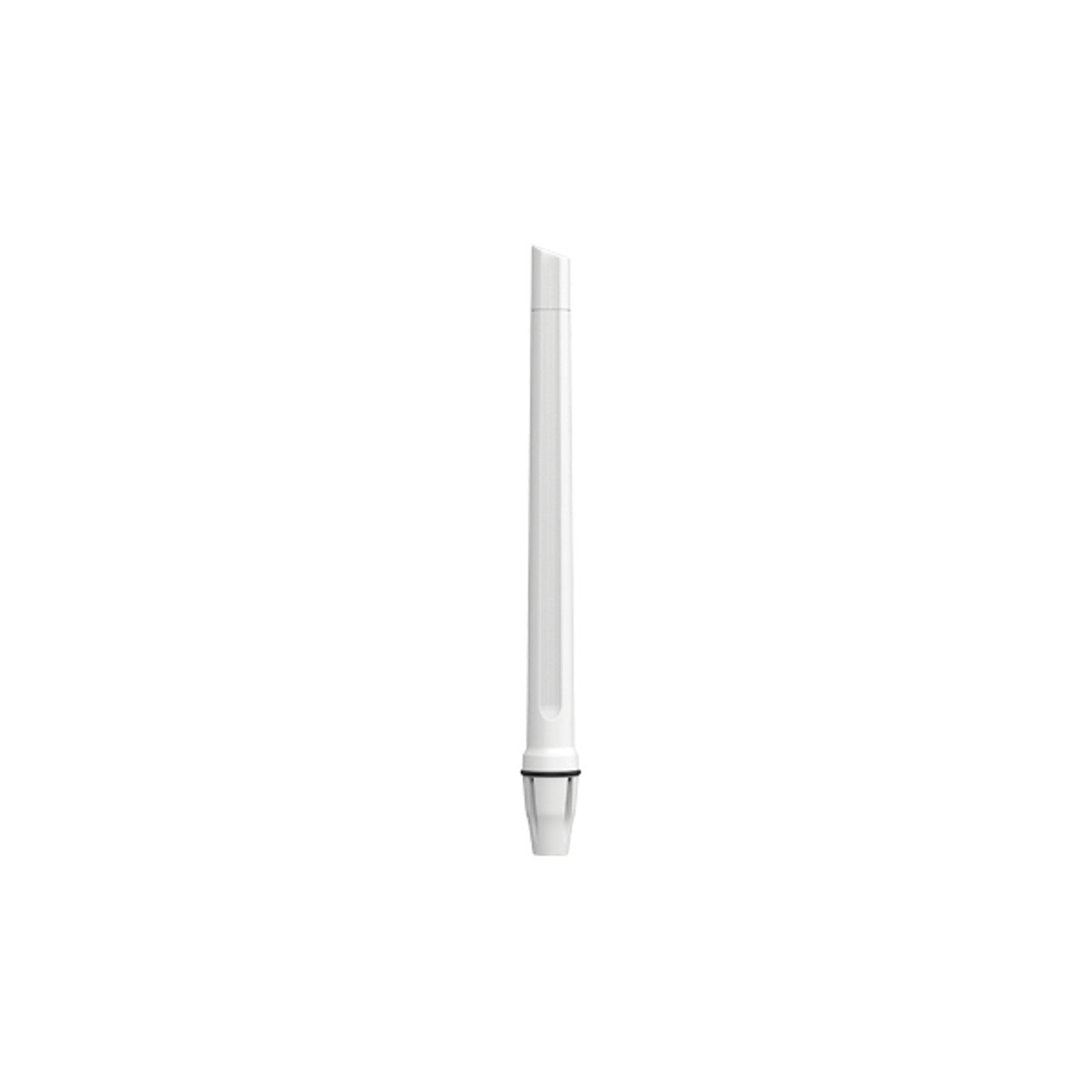

Poynting OMNI-414 Omni-Directional Marine 4x4 MIMO 4G-5G antenna 617 to 3800 MHz
Estimated delivery between December 29 and December 31.
Description::
The OMNI-414 is a state-of-the-art omni-directional marine antenna tailored for the modern demands of maritime connectivity. Offering 4x4 MIMO capability and ultra-wideband coverage it is a perfect choice for marine and coastal applications requiring reliable LTE and 5G communication.
The OMNI-414 is designed for superior pattern control making it an excellent omni-directional 4x4 MIMO antenna. Its ability to cover LTE Band 71 and CBRS bands from 3400 to 3800 MHz makes it future-proof suitable for both inland and marine use. The antenna guarantees exceptional signal reception in all parts of the world making it a reliable option for marine vessels and coastal installations.
Features:
- Ultra-Wideband Coverage: Supports a broad frequency range from 617 to 3800 MHz covering all contemporary LTE/5G bands.
- 4x4 MIMO Capability: Enhances performance and data throughput in LTE and 5G networks.
- Marine-Grade Construction: IP68 rating ensures robustness against harsh marine conditions including dust and water ingress.
- UV and Saltwater Protection: Suitable for corrosive marine environments thanks to its UV-stable ASA radome material.
- Versatile Mounting Options: Includes options for pole marine and wall mounting with optional 316 stainless steel brackets.
- Omni-Directional Performance: Ensures superior signal distribution and pattern control over the entire frequency range.
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Marine & Coastal Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 617-698MHz 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz |
| Frequency Range | 617 – 3800 MHz |
| Gain | 4dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n48 n51 n53 n65 n66 n67 n71 n74 n75 n76 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Omni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B71 B74 B85 B103 B106 |
| Mounting Type | Pole Mount Marine Mount Wall Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | SMA |
| MIMO | 4×4 |
| Polarisation | Linear Polarised |
| Environmental | IP68 Marine Grade Salt Spray Protected |
| Enclosure Name | Moray |
| Enclosure Size | Large |
| LTE Ports | 4 |
