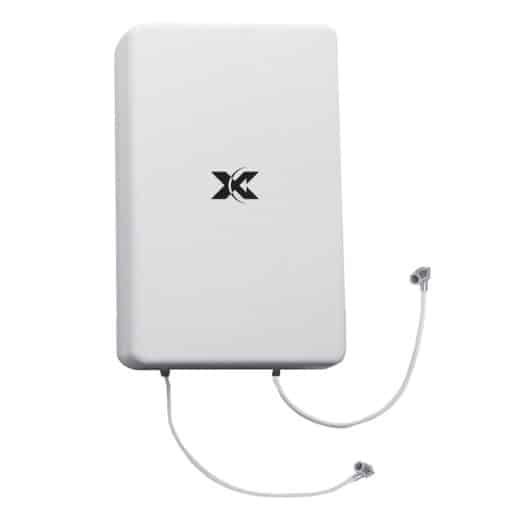

Cel-Fi Quatra Wideband Panel MIMO Antenna

Cel-Fi

$329.94

This product is currently sold out

The Cel-Fi MIMO Panel Antenna is the only authorized indoor/outdoor antenna for Cel-Fi QUATRA.

FEATURES

  • MIMO (LTE)
  • Dual polarization (vertical/horizontal) design
  • QMA quick-release connector
  • Wideband coverage (700 “ 2700MHz)
  • Low VSWR
  • Aesthetically pleasing low profile housing

Cel-Fi AntennaBoost integrates the Cel-Fi MIMO Panel Antenna with the Cel-Fi WAVE Platform to provide the best donor signal in the industry. The antenna connects to the Cel-Fi QUATRA Network Unit or Coverage Unit with QMA (quick connect) cables. Nextivity ™s proprietary 8-position dial base enables the antenna to be rotated in 45-degree increments for best performance managed with real-time data from the Cel-Fi WAVE Platform Antenna Position Test.

ELECTRICAL SPECIFICATIONS

Frequency Range 698-960 MHz and 1710-2700 MHz
Input Impedance 50 Ω
Gain 6.5 dBi “ 9.0 dBi
VSWR ≤2.0 / ≤1.8
Polarisation ±45°
Isolation 23dB
Horizontal Beamwidth 60° “ 78°
Vertical Beamwidth 55/65° / 75/55°
Maximum Input Power 50W “ 100 W
Lightning Protection DC Ground

MECHANICAL SPECIFICATIONS

Connector 2 x QMA Right Angle Male with 2m Coax Cable
Dimensions 315x195x68 mm
Shipping Dimensions 385x235x95 mm
Weight 0.95 kg
Reflector Material Brass and PCB
Radome Material ABS (UV Stabilized)
Operating Temperature -40°C to +65°C
Pole Diameter Ø38-Ø52 mm
