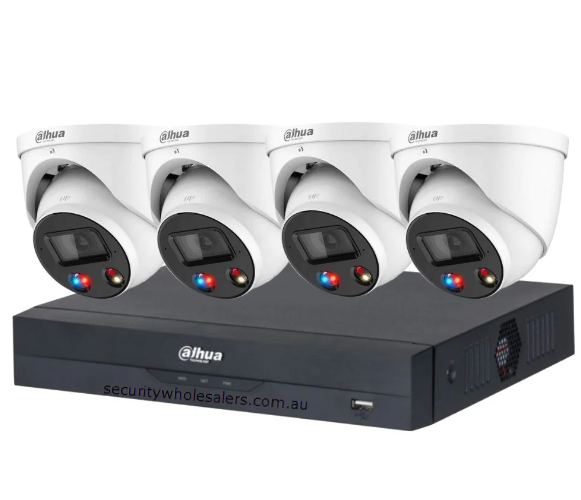

Dahua 4 x 6MP TIOC Advanced 2.0 DH-IPC-HDW3649H-AS-PV-ANZ Turret Kit 4CH NVR

$1,627.00 $1,488.98

Estimated delivery between June 04 and June 06.

Minimum of 1 / increment of 1

6 Megapixel cameras | TiOC 2.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 4.0

Product Overview

This Dahua 4 Channel 6MP TiOC turret kit is designed for proactive deterrence and intelligent monitoring. Featuring four Dahua DH-IPC-HDW3649H-AS-PV-ANZ 6MP TiOC Advanced 2.0 cameras- the system offers full-colour video at night- red and blue warning lights- and a built-in microphone and speaker for two-way communication. Powered by WizSense and SMD 4.0- it filters out false alarms with remarkable precision. With a powerful 2.8mm fixed lens- IR and warm light up to 30m- and compatibility with AI-enabled motion detection- it provides an intelligent surveillance solution for homes and small businesses.

Kit Inclusions

Dahua 8ch 6MP Dahua TIOC Turret Kit includes: 1 xDHI-NVR4104HS-P-AI/ANZ- 4 x DH-IPC-HDW3649H-AS-PV-ANZ

4 of Dahua TIOC Advanced 2.0 DH-IPC-HDW3649H-AS-PV-ANZ Dahua 6MP AI Active Deterrence Full color Starlight IP Turret Camera

6MPWeatherproofSpeakerNightMicrophoneFalseColourStrobe

Additional Information

Description:

Contents:

  • 6 Megapixel cameras | TiOC 2.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 4.0
  • Including 3 years Warranty and Support

    • Specifications

    Camera
    Image Sensor 1/2.8″ CMOS
    Max. Resolution 3840 (H) × 2160 (V)
    ROM 128 MB
    RAM 512 MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual 1/3 s–1/100-000 s
    Min. Illumination 0.004 lux@F1.0 (Color- 30 IRE)0.0004 lux@F1.0 (B/W- 30 IRE)0 lux (illuminator on)
    S/N Ratio ﹥ 56 dB
    Illumination Distance 30 m (98.43 ft) (IR)30 m (98.43 ft) (warm light)
    Illuminator On/Off Control Auto; manual
    Illuminator Number 1 (IR LED)1 (warm light)
    Pan/Tilt/Rotation Range Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360°
    Lens
    Lens Type Fixed-focal
    Mount Type M12
    Focal Length 2.8 mm; 3.6 mm
    Field of View 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°
    Iris Type Fixed
    Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)3.6 mm: 2.8 m (6.23 ft)
    DORI Distance Lens Detect Observe Recognize Identify
    2.8 mm 91.0 m (298.56 ft) 36.4 m

    ( 119.42 ft)

    		 18.2 m

    (59.71 ft)

    		 9.1 m

    (29.86 ft)
    3.6 mm 107.6 m (353.02 ft) 43.0 m

    ( 141.08 ft)

    		 21.5 m

    (70.54 ft)

    		 10.8 m

    (35.43 ft)
    Professional- intelligent
    IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
    SMD 3.0 Less false alarm- longer detection distance
    Intelligent Search Work together with Smart NVR to perform refine intelligent search- event extraction and merging to event videos.
    Video
    Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
    Smart Codec Smart H.265+; Smart H.264+
    AI Coding AI H.265; AI H.264
    Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)Third stream: 1920 × 1080@(1 fps–30 fps)*The values above are the max. frame rates of each stream; for multiple streams- the values will be subjected to the total encoding capacity.
    Stream Capability 3 streams
    Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
    Bit Rate Control CBR/VBR
    Video Bit Rate H.264: 3 kbps–20480 kbpsH.265: 3 kbps–20480 kbps
    Day/Night Auto (ICR)/Color/B/W
    BLC Yes
    HLC Yes
    WDR 120 dB
    Scene Self-adaptation Yes
    White Balance Auto; natural; street lamp; outdoor; manual; regional custom
    Gain Control Auto; manual
    Noise Reduction 3D NR
    Motion Detection OFF/ON (4 areas)
    Region of Interest (RoI) Yes (4 areas)
    Smart Illumination Yes
    Defog Yes
    Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
    Mirror Yes
    Privacy Masking 8 areas
    Audio
    Built-in MIC Yes
    Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
    Alarm
    Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
    Network
    Network RJ-45 (10/100 Base-T)
    SDK and API Yes
    Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
    Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
    Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
    User/Host 20 (Total bandwidth: 72 M)
    Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
    Browser IE: IE8/9/11ChromeFirefox
    Management Software Smart PSS; DSS; DMSS
    Mobile Phone iOS; Android
    Certification
    Certification CE-LVD: EN 62368-1;

    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

    FCC: 47 CFR FCC Part 15- Subpart B;

    UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
    Port
    Audio Input 1 channel (RCA port)
    Audio Output 1 channel (RCA port)
    Alarm Input 1 channel in: 5 mA 3V–5 VDC
    Alarm Output 1 channel out: 300 mA 12 VDC
    Power
    Power Supply 12 VDC/PoE (802.3af)
    Power Consumption Basic: 2.9 W (12 VDC); 5.0 W (PoE)Max. (H.265+main stream/IR intensity+warm light on): 7.8 W(12 VDC) 9.6 W (PoE)
    Environment
    Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
    Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
    Protection Grade IP67
    Structure
    Casing Metal
    Dimensions 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
    Net Weight 745 g (163.1 lb)
    Gross Weight 915 g (200.6 lb)
