  • Dahua 4 x 8MP Dahua TIOC Advanced 2.0 DH-IPC-HDW3849HP-AS-PV-0280B-S3 with Wizsense Turret Kit with 8CH NVR

Dahua 4 x 8MP Dahua TIOC Advanced 2.0 DH-IPC-HDW3849HP-AS-PV-0280B-S3 with Wizsense Turret Kit with 8CH NVR

Dahua

$1,729.00

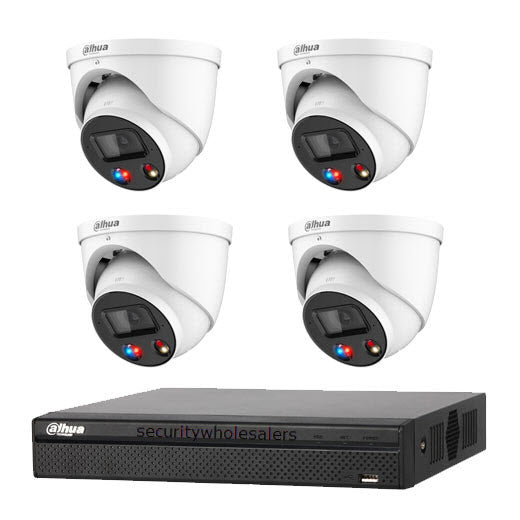

Product Image
This product is currently sold out

Overview:

Dahua 8ch 4 x 8MP Turret Kit | TiOC 2.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 3.0

Dahua 8ch 8MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-4KS2 ; 4 x TIOC 2.0 DH-IPC-HDW3849HP-AS-PV-0280B-S3

4 of Dahua TIOC Advanced 2.0 DH-IPC-HDW3849HP-AS-PV-0280B-S3 Dahua 8MP AI Active Deterrence Full color Starlight IP Turret Camera

(note this NVR doesn’t allow arming / disarming as you please; only via schedule. If you wish to arm / disarm via app; please select upgrade to PRO)













DH-IPC-HDW3849H-AS-PV-S3_datasheet

Camera Dimensions

Operational Manual

• Smart Illumination Mode (Default): Switch between IR Mode and white light when target is detected.
• IR Mode (Optional): Only the IR illuminator is ON. It is suitable for scenes where supplementary white light is not required; significantly reducing light pollution.
• White Light Mode (Optional): Only the white light is ON. It is suitable for scenes that require color video footage

Contents:

  • Dahua 8ch 4 x 8MP Turret Kit | TiOC 2.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 3.0
  • Including 3 years Warranty and Support

    • Specifications

    Camera
    Image Sensor 1/2.8″ CMOS
    Max. Resolution 3840 (H) × 2160 (V)
    ROM 128 MB
    RAM 512 MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual 1/3 s–1/100;000 s
    Min. Illumination 0.004 lux@F1.0 (Color; 30 IRE)
    0.0004 lux@F1.0 (B/W; 30 IRE)
    0 lux (illuminator on)
    S/N Ratio ﹥ 56 dB
    Illumination Distance 30 m (98.43 ft) (IR)
    30 m (98.43 ft) (warm light)
    Illuminator On/Off Control Auto; manual
    Illuminator Number 1 (IR LED)
    1 (warm light)
    Pan/Tilt/Rotation Range Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°
    Lens
    Lens Type Fixed-focal
    Mount Type M12
    Focal Length 2.8 mm; 3.6 mm
    Field of View 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°
    3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°
    Iris Type Fixed
    Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)
    3.6 mm: 2.8 m (6.23 ft)
    DORI Distance Lens Detect Observe Recognize Identify
    2.8 mm 91.0 m (298.56 ft) 36.4 m

    ( 119.42 ft)

    		 18.2 m

    (59.71 ft)

    		 9.1 m

    (29.86 ft)
    3.6 mm 107.6 m (353.02 ft) 43.0 m

    ( 141.08 ft)

    		 21.5 m

    (70.54 ft)

    		 10.8 m

    (35.43 ft)
    Professional; intelligent
    IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
    SMD 3.0 Less false alarm; longer detection distance
    Intelligent Search Work together with Smart NVR to perform refine intelligent search; event extraction and merging to event videos.
    Video
    Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
    Smart Codec Smart H.265+; Smart H.264+
    AI Coding AI H.265; AI H.264
    Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
    Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
    Third stream: 1920 × 1080@(1 fps–30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams; the values will be subjected to the total encoding capacity.
    Stream Capability 3 streams
    Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
    Bit Rate Control CBR/VBR
    Video Bit Rate H.264: 3 kbps–20480 kbps
    H.265: 3 kbps–20480 kbps
    Day/Night Auto (ICR)/Color/B/W
    BLC Yes
    HLC Yes
    WDR 120 dB
    Scene Self-adaptation Yes
    White Balance Auto; natural; street lamp; outdoor; manual; regional custom
    Gain Control Auto; manual
    Noise Reduction 3D NR
    Motion Detection OFF/ON (4 areas)
    Region of Interest (RoI) Yes (4 areas)
    Smart Illumination Yes
    Defog Yes
    Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
    Mirror Yes
    Privacy Masking 8 areas
    Audio
    Built-in MIC Yes
    Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
    Alarm
    Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
    Network
    Network RJ-45 (10/100 Base-T)
    SDK and API Yes
    Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
    Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
    Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
    User/Host 20 (Total bandwidth: 72 M)
    Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
    Browser IE: IE8/9/11
    Chrome
    Firefox
    Management Software Smart PSS; DSS; DMSS
    Mobile Phone iOS; Android
    Certification
    Certification CE-LVD: EN 62368-1;

    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

    FCC: 47 CFR FCC Part 15; Subpart B;

    UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
    Port
    Audio Input 1 channel (RCA port)
    Audio Output 1 channel (RCA port)
    Alarm Input 1 channel in: 5 mA 3V–5 VDC
    Alarm Output 1 channel out: 300 mA 12 VDC
    Power
    Power Supply 12 VDC/PoE (802.3af)
    Power Consumption Basic: 2.9 W (12 VDC); 5.0 W (PoE)
    Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
    Environment
    Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
    Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
    Protection Grade IP67
    Structure
    Casing Metal
    Dimensions 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
    Net Weight 745 g (163.1 lb)
    Gross Weight 915 g (200.6 lb)
