Dahua 8 x 8MP Wizsense Turret Security Kit with 8CH PRO NVR 2.8mm lens

Dahua

$2,512.00

This product is currently sold out

Overview:

8MP cameras + 8CH PRO NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution

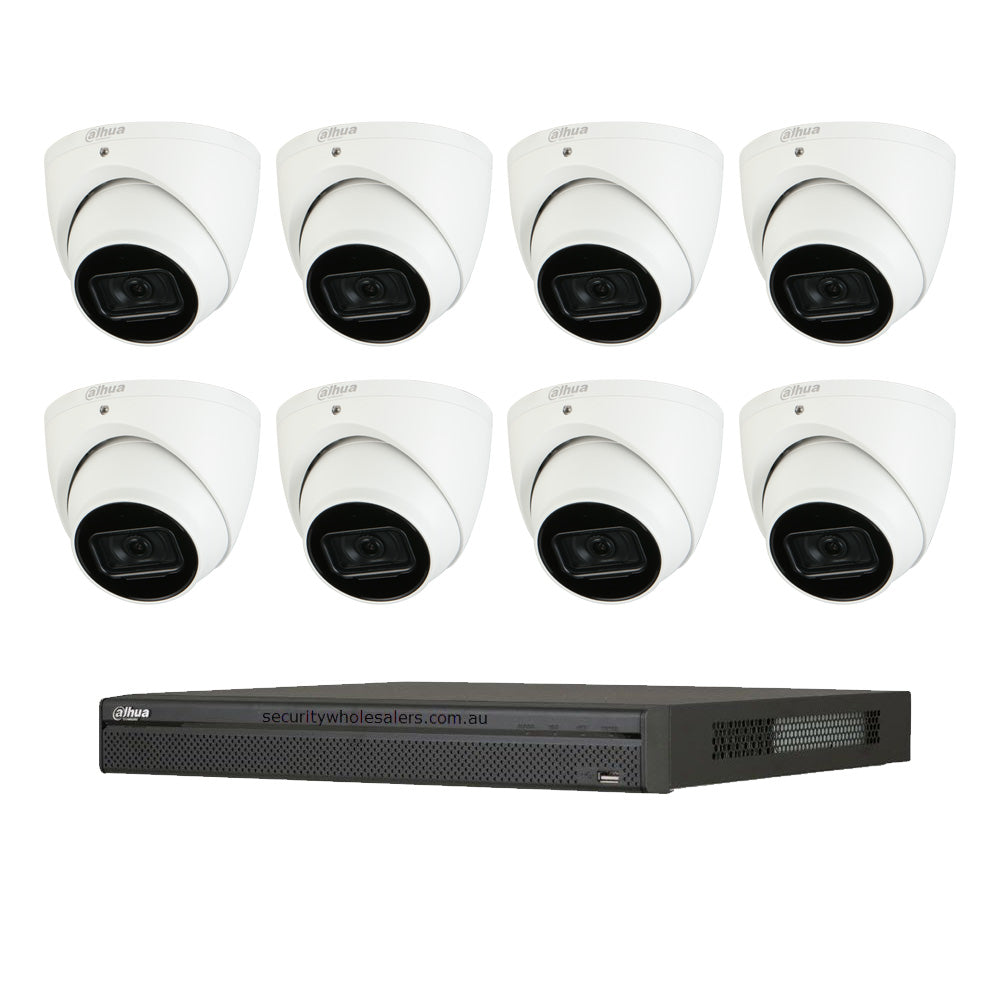

Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR5208-8P-4KS2; 8 x DH-IPC-HDW3841TMP-AS-0280B

Localised camera footage storage capability: up to 256 GB MicroSD Card storage

Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.

Built-in Infrared LED; up to 30 metres distance.

Smart Motion Detection – ie. Human / Vehicle filtering

Resilient “Weather-Proof” Ingress Protection Rating (IP67)









Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR5208-8P-4KS2; 8 x DH-IPC-HDW3841EMP-AS-0280B;

Contents:

  • 8MP cameras + 8CH PRO NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution
  • Including 3 years Warranty and Support
  • Specifications

    Camera
    Image Sensor 1/2.7” 8Megapixel progressive CMOS
    Max. Resolution 3840 (H) ×2160 (V)
    ROM 128 MB
    RAM 256 MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual 1/3 s–1/100; 000 s
    Min. Illumination 0.009 Lux@F2.0
    S/N Ratio >56 dB
    Illumination Distance 30 m (98.43 ft)
    Illuminator On/Off Control Auto/Manual
    Illuminator Number 2 (IR LED)
    Pan/Tilt/Rotation Range Pan: 0°–360°

    Tilt: 0°–78°

    Rotation: 0°–360°

    Lens
    Lens Type Fixed-focal
    Mount Type M12
    Focal Length 2.8 mm 3.6 mm
    Max. Aperture F2.0

    F2.0

    Field of View 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°

    3.6 mm: Pan 87° × Tilt 47° × Diagonal 104°

    Iris Type Fixed
    Close Focus Distance 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft)
    Smart event
    IVS Tripwire; intrusion
    Video
    Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
    Smart Codec Smart H.265+/ Smart H.264+
    Video Frame Rate Main stream:

    3840 × 2160 (1 fps–15 fps)

    2688 × 1520 (1 fps–25/30 fps)

    Sub stream:

    704 × 576 (1 fps–25 fps)

    704 × 480 (1 fps–30 fps)

    Stream Capability 2 streams
    Resolution 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
    Bit Rate Control CBR/VBR
    Video Bit Rate H.264: 32 kbps–8192 kbps

    H.265: 12 kbps–8192 kbps

    Day/Night Auto(ICR)/Color/B/W
    BLC Yes
    HLC Yes
    WDR 120 dB
    White Balance Auto/natural/street lamp/outdoor/manual/regional custom
    Gain Control Auto/Manual
    Noise Reduction 3D NR
    Motion Detection OFF/ON (4 areas; rectangular)
    Region of Interest(RoI) Yes (4 areas)
    Smart Illumination Yes
    Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.)
    Mirror Yes
    Privacy Masking 4 areas
    Audio
    Built-in MIC Yes
    Audio Compression G.711A; G.711Mu; G.726
    Alarm
    Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
    Network
    Network RJ-45 (10/100 Base-T)
    SDK and API Yes
    Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
    Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
    Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
    User/Host 20
    Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP
    Browser IE

    Chrome

    Firefox

    Management Software Smart PSS; DSS; DMSS
    Mobile Phone IOS; Android
    Certification
    Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15; Subpart B
    Power
    Power Supply 12V DC/PoE (802.3af)
    Power Consumption < 7.2W
    Environment
    Operating Conditions –40°C to +55°C (–40°F to +131°F)/less than ? 95% RH
    Storage Temperature –40°C to +60°C (–40°F to +140°F)
    Protection IP67
    Structure
    Casing Metal
    Dimensions 99.1mm × ?121.9 mm (3.9″ × ?4.8″)
    Net Weight 0.48 kg (1.1 lb)
    Gross Weight 0.65 kg (1.4 lb)
