The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications. Featured with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments. Supports all Australian 3G/4G bands including 700MHz.
- Voice Port (FXS)
- Rugged Enclosure with a wide operation range from -40°C to 70°C for harsh environments.
- Dual SIM redundancy
- Rugged Enclosure
- 1 RS232
- 4 PoE Ethernet Ports
- Supports WiFi Client and AP Mode
- 1 Digital Input and 1 Digital Output
- Open VPN/IPsec/PPTP/L2TP/DMVPN/GRE
The Ursalink UR35 is a cost-effective industrial cellular router with embedded intelligent software features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier supported to make this drop-in connectivity a great help for operators in maximizing uptime.
Integrating embedded cellular modem and dual SIM function, the UR35 provides 3G/4G cellular network with 150 Mbps download and 50 Mbps uplink, it also has 5 fast Ethernet ports and supports Wi-Fi that compliance with 802.11b/g/n standard. All these capabilities deliver users uninterrupted internet access.
Easy deployment and comprehensive remote device management make UR35 versatile in most of IoT/M2M applications.

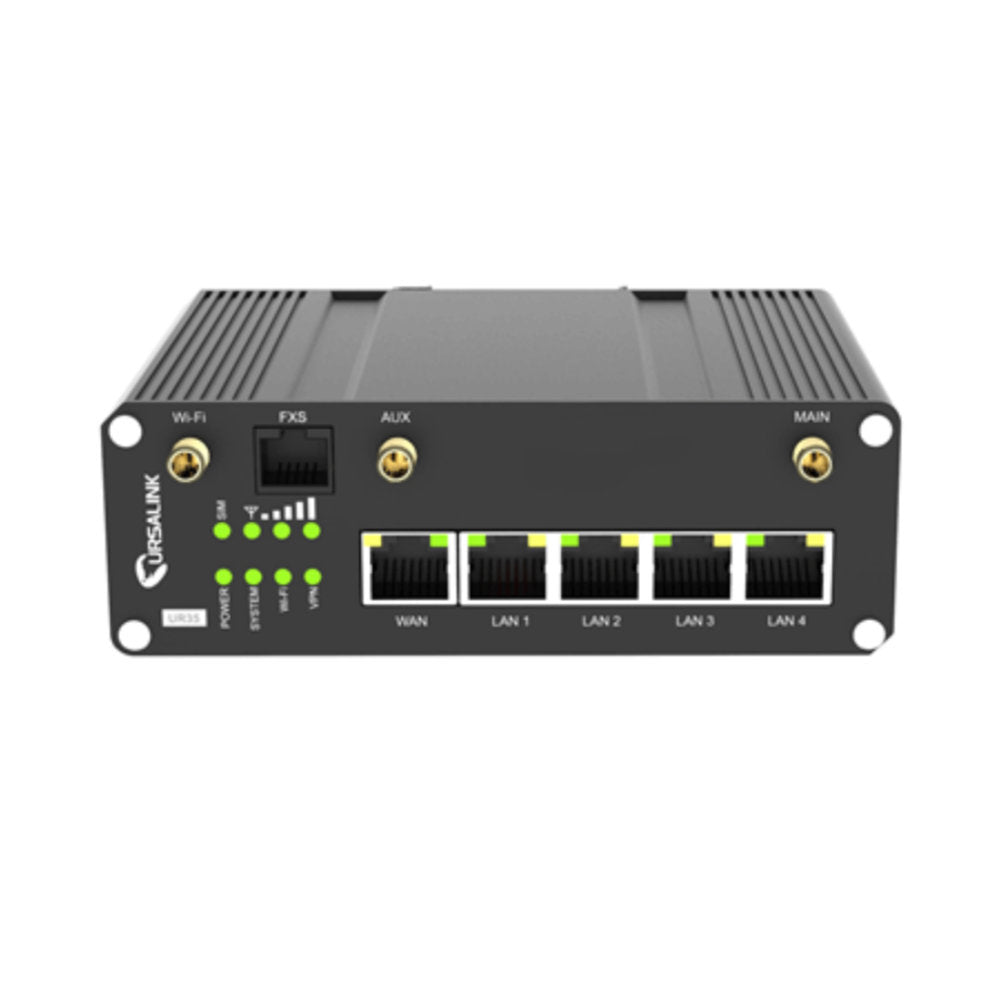

Ursalink UR35-L00AU-W-S Router with Voice 5xRJ45, WiFi, RS232, I/O
WIRELESS | |
Cellular Technology | Cat4 – 3G/4G |
WiFi | 2.4 GHz (b/g/n) |
GPS | Χ |
Bluetooth | Χ |
PORTS | |
Ethernet Ports | 5 x 10/100 |
LAN/WAN | 1x WAN + 4x LAN |
WAN Failover | WAN + 2nd SIM |
RS232 | ✓ |
RS485 | Χ |
Digital I/O | 1 x in, 1 x Out |
Analog Input | Χ |
USB | Χ |
Mobile antenna | 2x SMA |
WiFi antenna | 1x SMA |
GPS antenna | Χ |
Voice Port (FXS) | 2x RJ11 |
PROCESSING | |
CPU | 528 MHz |
RAM | 128 MB |
Flash Memory | 128 MB |
SLOTS | |
SIM card slots | 2x 2FF |
Micro SD Slot | ✓ |
BAND SUPPORT | |
LTE | B1/B2/B3/B4/B5/B7/B8/B28/B40 (700/850/900/1700/1800/1900/2100/2300/2600MHz) |
WCDMA | B1/B2/B5/B8 (850/900/1900/2100MHz) |
